8-bit microcontroller featuring a 25MHz 8051 core architecture. Offers 2KB FLASH memory and 256B RAM. Includes SPI, UART, and USART interfaces, with 6 programmable I/Os. Operates from 2.7V to 5.25V, with a temperature range of -40°C to 125°C. Surface mountable in a DFN-10 package, with integrated peripherals like Brown-out Detect/Reset, POR, PWM, and WDT.
Frequency25MHz
PackageDFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Silicon Labs C8051F527-IM technical specifications.
General
Access Time
25us
Package/Case
DFN
Core Architecture
8051
Data Bus Width
8b
Interface
SPI, UART, USART
Lead Free
Lead Free
Max Frequency
25MHz
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Memory Size
2KB
Memory Type
FLASH,
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of I/Os
6
Number of Programmable I/O
6
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
122
Packaging
Rail/Tube
Peripherals
Brown-out Detect/Reset, POR, PWM, WDT, Temp Sensor
RAM Size
256B
RoHS Compliant
Yes
Series
C8051F52x
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F527-IM Datasheet
Download the complete datasheet for Silicon Labs C8051F527-IM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

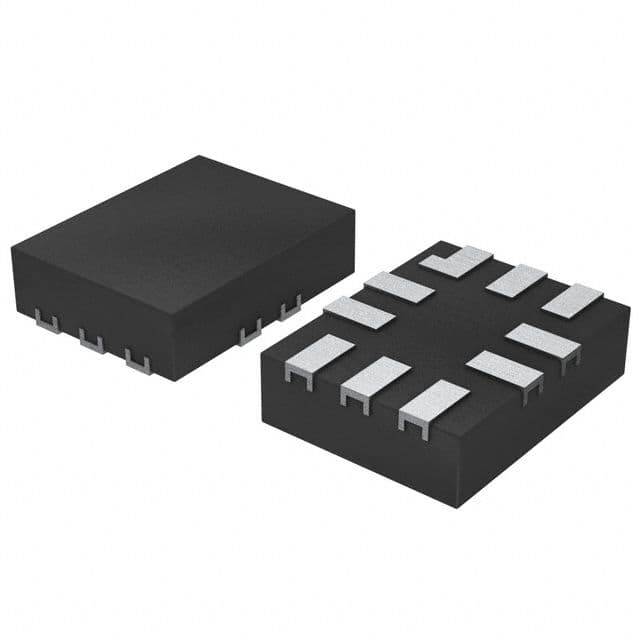

Product Images
