8-Bit Microcontroller featuring an 8051 CPU core, operating at up to 25MHz. This FLASH memory microcontroller offers 15KB of program memory and 0.5KB of RAM. It includes 39 programmable I/O pins, 16 ADC channels, 4 timers/counters, 1 SPI channel, and 1 UART channel. The device operates from a 1.8V to 3.6V supply and is housed in a 7mm x 7mm x 1mm QFN package with tin contact plating. Integrated peripherals include POR, PWM, WDT, and a temperature sensor.
Frequency25MHz
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs C8051F704-GM technical specifications.
General
Package/Case
QFN
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
25MHz
Height
1mm
Length
7mm
Max Frequency
25MHz
Max Operating Temperature
85°C
Memory Size
15KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
1.8V
Number of ADC Channels
16
Number of Channels
3
Number of I/Os
39
Number of Programmable I/O
39
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Operating Supply Voltage
3.3V
Oscillator Type
Internal
Package Quantity
43
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT, Temp Sensor
RAM Size
0.5KB
RoHS Compliant
Yes
Series
C8051F70x
Watchdog Timer
Yes
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F704-GM Datasheet
Download the complete datasheet for Silicon Labs C8051F704-GM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

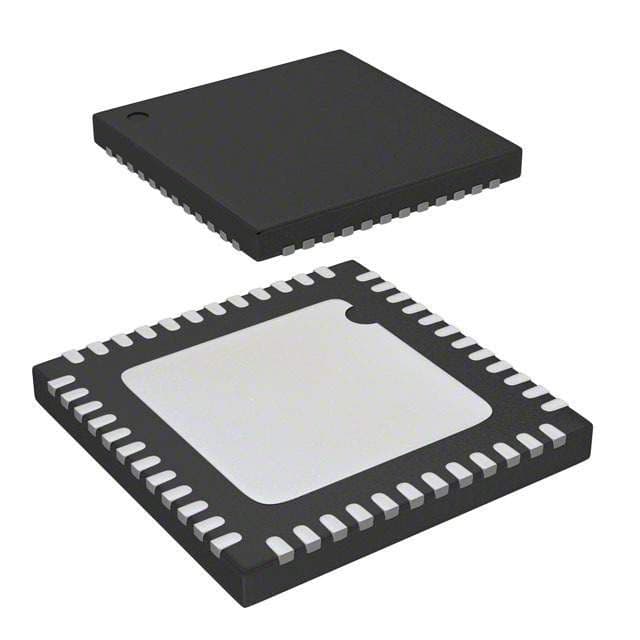

Product Images
