8-bit microcontroller featuring an 8051 core architecture, operating at up to 25MHz. This integrated circuit offers 8KB of FLASH memory and 0.5KB of RAM, with 39 programmable I/O pins. Includes 4 timers/counters, internal oscillator, POR, PWM, WDT, and a temperature sensor. Packaged in a 48-TQFP with tin contact plating, this RoHS compliant component operates between -40°C and 85°C with a supply voltage range of 1.8V to 3.6V.
Frequency25MHz
PackageTQFP
Quick Jump:
Technical Specifications
Silicon Labs C8051F712-GQ technical specifications.
General
Package/Case
TQFP
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
25MHz
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of Channels
3
Number of I/Os
39
Number of Programmable I/O
39
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT, Temp Sensor
RAM Size
0.5KB
RoHS Compliant
Yes
Series
C8051F71x
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F712-GQ Datasheet
Download the complete datasheet for Silicon Labs C8051F712-GQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

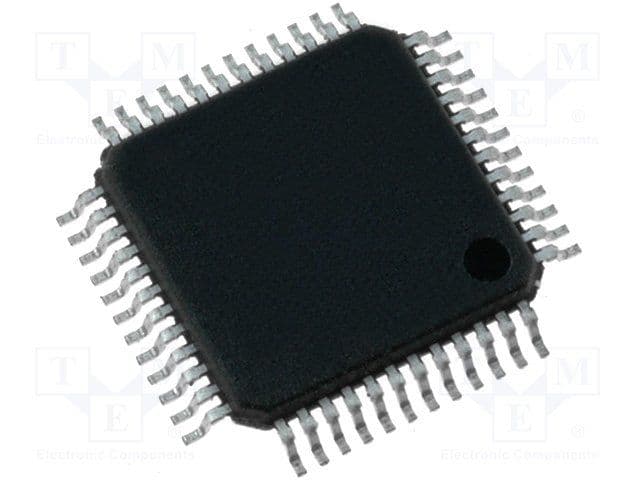

Product Images
