8-bit microcontroller featuring an 8051 core architecture, operating at up to 25MHz. This CMOS device offers 8KB of FLASH memory and 0.5KB of RAM, with 39 programmable I/O pins. Integrated peripherals include POR, PWM, and a watchdog timer, supported by 4 timers/counters and an internal oscillator. Operates within a supply voltage range of 1.8V to 3.6V, with an operating temperature range of -40°C to 85°C. Packaged in TQFP with tin contact plating.
Frequency25MHz
PackageTQFP
Quick Jump:
Technical Specifications
Silicon Labs C8051F713-GQ technical specifications.
General
Package/Case
TQFP
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
25MHz
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
FLASH,
Min Supply Voltage
1.8V
Number of Channels
3
Number of I/Os
39
Number of Programmable I/O
39
Number of Timers/Counters
4
Oscillator Type
Internal
Package Quantity
250
Packaging
Tray
Peripherals
POR, PWM, WDT
RAM Size
0.5KB
RoHS Compliant
Yes
Series
C8051F71x
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051F713-GQ Datasheet
Download the complete datasheet for Silicon Labs C8051F713-GQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

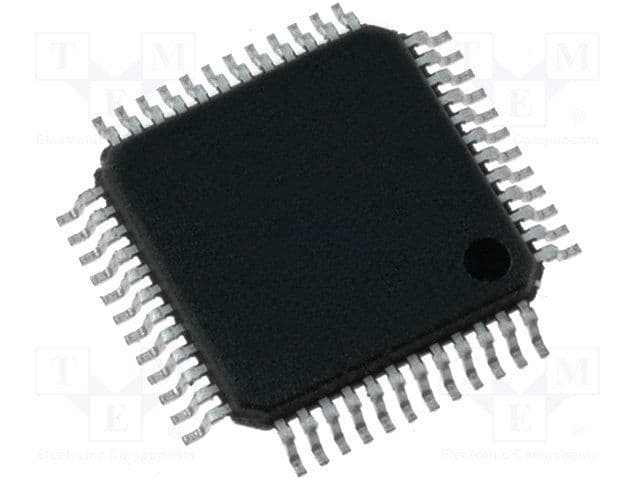

Product Images
