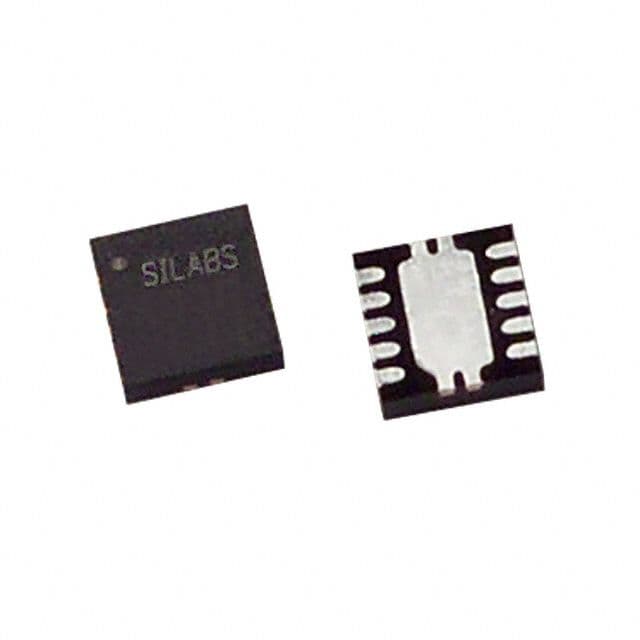

8-Bit Microcontroller (MCU) featuring an 8051 core architecture, operating at up to 25MHz. This CMOS device offers 8KB of OTP/FLASH/EPROM memory and 0.25KB of RAM. Integrated peripherals include 8 ADC channels, 3 timers/counters, and 8 programmable I/Os. Communication interfaces support I2C, UART, USART, and SMBus. The component is housed in a 3x3mm QFN package with tin-matte contact plating, operating within a 1.8V to 3.6V supply range and a temperature range of -40°C to 85°C.
Frequency25MHz
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs C8051T600-GM technical specifications.
General
Package/Case
QFN
Contact Plating
Tin, Matte
Core Architecture
8051
Data Bus Width
8b
Frequency
25MHz
Height
1mm
Interface
I2C, UART, USART, SMBus, 2-Wire
Lead Free
Lead Free
Length
3mm
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
OTP, , FLASH, EPROM
Min Supply Voltage
1.8V
Number of ADC Channels
8
Number of Channels
3
Number of I/Os
8
Number of Programmable I/O
8
Number of Timers/Counters
3
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
122
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT, Temp Sensor
RAM Size
0.25KB
RoHS Compliant
Yes
Series
C8051T60x
Watchdog Timer
Yes
Width
3mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs C8051T600-GM Datasheet
Download the complete datasheet for Silicon Labs C8051T600-GM to view detailed technical specifications.
