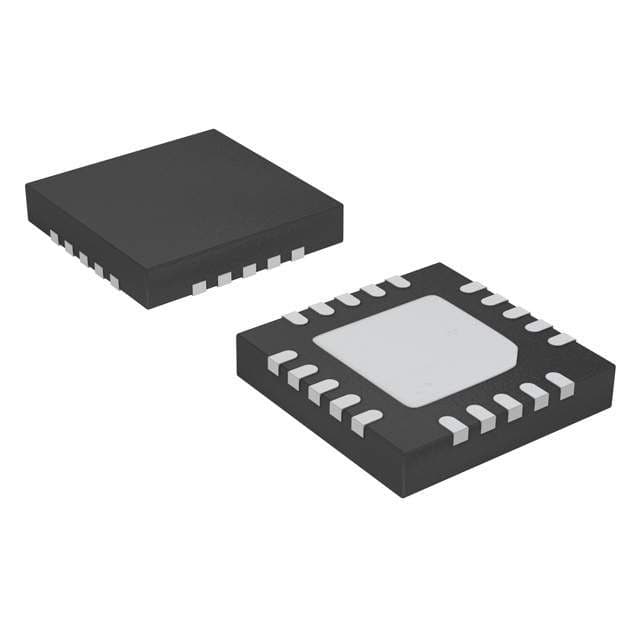

8-bit RISC microcontroller featuring 8KB OTP/EPROM memory and 0.75KB RAM. Operates at up to 25MHz with an 8-bit data bus. Includes 17 programmable I/Os, 16 ADC channels, and 4 timers/counters. Supports I2C, SPI, UART, USART, and SMBus interfaces. Packaged in a 4mm x 4mm x 1mm QFN with tin plating, operating from 1.8V to 3.6V.
Frequency25MHz
PackageQFN
Quick Jump:
Technical Specifications
Silicon Labs C8051T630-GM technical specifications.
General
Package/Case
QFN
Contact Plating
Tin
Core Architecture
8051
Data Bus Width
8b
Frequency
25MHz
Height
1mm
Interface
I2C, SPI, UART, USART, SMBus, 2-Wire
Length
4mm
Max Frequency
25MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Memory Size
8KB
Memory Type
OTP, , EPROM
Min Supply Voltage
1.8V
Number of ADC Channels
16
Number of Channels
3
Number of I/Os
17
Number of Programmable I/O
17
Number of SPI Channels
1
Number of Timers/Counters
4
Number of UART Channels
1
Oscillator Type
Internal
Package Quantity
91
Packaging
Rail/Tube
Peripherals
POR, PWM, WDT, Temp Sensor
RAM Size
0.75KB
RoHS Compliant
Yes
Series
C8051T63x
Watchdog Timer
Yes
Width
4mm
Compliance
RoHS
Compliant
