Dual-channel peripheral driver IC featuring 4A high-level output current and 2A low-level output current. This surface-mount device operates from a 4.5V to 5.5V supply, with a maximum power dissipation of 1.2W. It offers a 60ns propagation delay and 12ns fall time, with a wide operating temperature range of -40°C to 125°C. Approvals include CSA, VDE, UR, and CQC, with RoHS compliance and AEC-Q100 qualification.
PackageLGA
MountingSurface Mount
Quick Jump:
Technical Specifications
Silicon Labs SI8233AB-D-IM technical specifications.
General
Approvals
CSA, VDE, UR, CQC
Package/Case
LGA
Fall Time
12ns
High Level Output Current
4A
Low Level Output Current
2A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Power Dissipation
1.2W
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
2
Number of Drivers
2
Number of Outputs
2
Operating Supply Current
3.5mA
Output Current
6mA
Package Quantity
60
Packaging
Rail/Tube
Propagation Delay
60ns
Pulse Width Distortion (PWD)
5.6ns
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Turn-Off Delay Time
60ns
Turn-On Delay Time
60ns
Weight
0.017933oz
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI8233AB-D-IM Datasheet
Download the complete datasheet for Silicon Labs SI8233AB-D-IM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

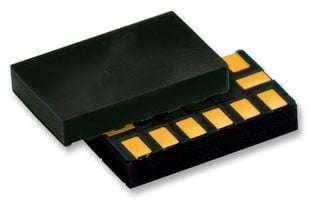

Product Images
