Silicon Labs
SI8233BB-C-IM
HB Based Peripheral Driver With Pwm, 0.4A, 5 X 5 MM, ROHS COMPLIANT, LGA-14
Frequency8MHz
PackageLGA
Power1.2W
Quick Jump:
Technical Specifications
Silicon Labs SI8233BB-C-IM technical specifications.
General
Package/Case
LGA
Fall Time
14ns
Frequency
8MHz
Height
0.94mm
Length
5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Power Dissipation
1.2W
Max Supply Voltage
24V
Min Supply Voltage
4.5V
Number of Drivers
2
Number of Outputs
2
Operating Supply Current
3.5mA
Output Current
4A
Output Voltage
40mV
Package Quantity
60
Packaging
Rail/Tube
Power Dissipation
1.2W
Propagation Delay
60ns
RoHS Compliant
Yes
Weight
0.001764oz
Width
5mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI8233BB-C-IM Datasheet
Download the complete datasheet for Silicon Labs SI8233BB-C-IM to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

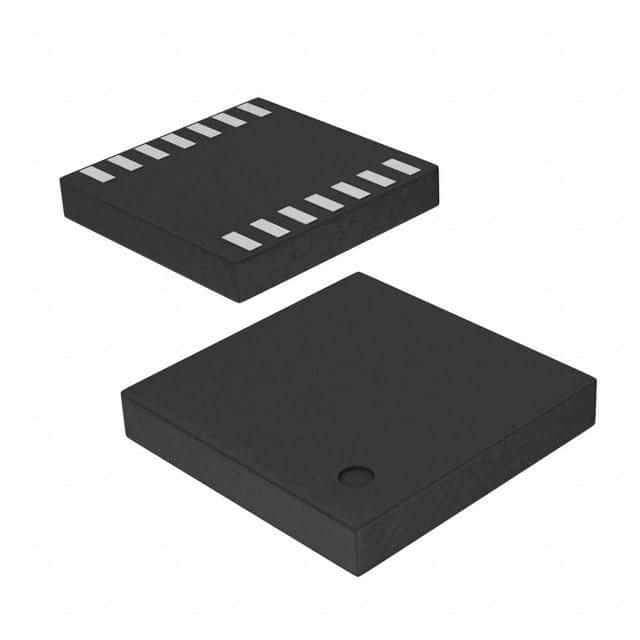

Product Images
