PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Silicon Labs SI8235AD-D-IS technical specifications.
General
Approvals
CSA, VDE, UR, CQC
Package/Case
SOIC
High Level Output Current
4A
Isolation Voltage
5kV
Low Level Output Current
2A
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
4A
Max Power Dissipation
1.2W
Max Supply Voltage
5.5V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
2
Number of Outputs
2
Packaging
Rail/Tube
Propagation Delay
60ns
Pulse Width Distortion (PWD)
5.6ns
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI8235AD-D-IS Datasheet
Download the complete datasheet for Silicon Labs SI8235AD-D-IS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

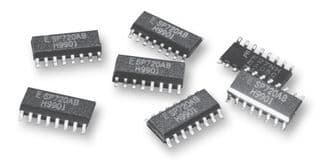

Product Images
