Technical Specifications
Silicon Labs SI8421AD-B-IS technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Data Rate
1Mbps
Depth
2.65mm
Isolated Power
No
Length
10.3mm
Max Input Current
5.6mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
150mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Channels
2
Operating Supply Current
2.3mA
Packaging
Rail/Tube
Propagation Delay
35ns
Pulse Width Distortion (PWD)
25ns
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Turn-On Delay Time
35ns
Type
General Purpose
Weight
0.001764oz
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI8421AD-B-IS Datasheet
Download the complete datasheet for Silicon Labs SI8421AD-B-IS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

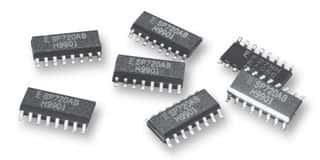

Product Images
