Technical Specifications
Silicon Labs SI8431AB-C-IS1 technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Data Rate
1Mbps
Isolated Power
No
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Number of Channels
3
Package Quantity
48
Packaging
Rail/Tube
Power Dissipation
275mW
Propagation Delay
35ns
Pulse Width Distortion (PWD)
25ns
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Supply Current
3.7mA
Turn-On Delay Time
35ns
Type
General Purpose
Weight
0.006637oz
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI8431AB-C-IS1 Datasheet
Download the complete datasheet for Silicon Labs SI8431AB-C-IS1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

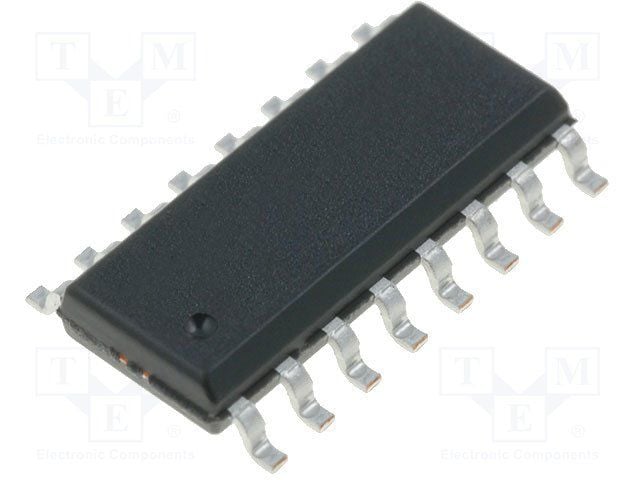

Product Images
