General purpose digital isolator with 3 unidirectional channels, offering 5kV isolation voltage. Features a 150Mbps data rate, 13ns propagation delay, and 4.5ns pulse width distortion. Operates from a 2.5V to 5.5V supply voltage with a maximum input current of 17.8mA. Packaged in a 16-pin SOIC, this AEC-Q100 compliant component is RoHS compliant and suitable for operation between -40°C and 125°C.
PackageSOIC
Current9.3mA
Power275mW
Quick Jump:
Technical Specifications
Silicon Labs SI8630ED-B-IS technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Data Rate
150Mbps
Depth
2.65mm
Isolated Power
No
Isolation Voltage
5kV
Length
10.3mm
Max Input Current
17.8mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Channels
3
Package Quantity
46
Packaging
Rail/Tube
Power Dissipation
275mW
Propagation Delay
13ns
Pulse Width Distortion (PWD)
4.5ns
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Supply Current
9.3mA
Turn-On Delay Time
10ns
Type
General Purpose
Weight
0.001764oz
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI8630ED-B-IS Datasheet
Download the complete datasheet for Silicon Labs SI8630ED-B-IS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

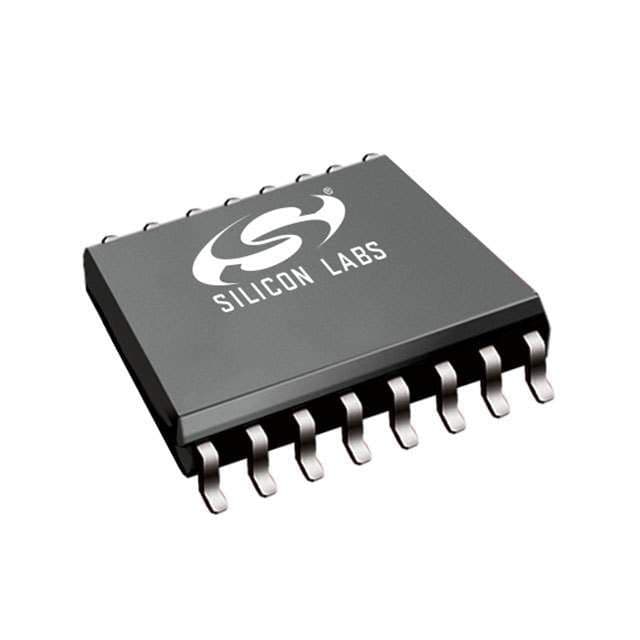

Product Images
