General purpose digital isolator featuring 4 unidirectional channels and 5kV isolation voltage. Operates with supply voltages from 2.5V to 5.5V, supporting data rates up to 150Mbps. Packaged in a 16-pin SOIC, this component offers a propagation delay of 13ns and a pulse width distortion of 4.5ns. Designed for automotive applications with AEC-Q100 qualification, it functions across an operating temperature range of -40°C to 125°C.
PackageSOIC
PolarityUnidirectional
Quick Jump:
Technical Specifications
Silicon Labs SI8640ED-B-IS technical specifications.
General
Package/Case
SOIC
Channel Type
Unidirectional
Data Rate
150Mbps
Depth
2.65mm
Isolated Power
No
Isolation Voltage
5kV
Length
10.3mm
Max Input Current
9.2mA
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
275mW
Max Supply Voltage
5.5V
Min Supply Voltage
2.5V
Number of Channels
4
Operating Supply Current
17.5mA
Packaging
Rail/Tube
Polarity
Unidirectional
Propagation Delay
13ns
Pulse Width Distortion (PWD)
4.5ns
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Turn-On Delay Time
10ns
Type
General Purpose
Weight
0.001764oz
Width
7.5mm
Compliance
RoHS
Compliant
Datasheet
Silicon Labs SI8640ED-B-IS Datasheet
Download the complete datasheet for Silicon Labs SI8640ED-B-IS to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

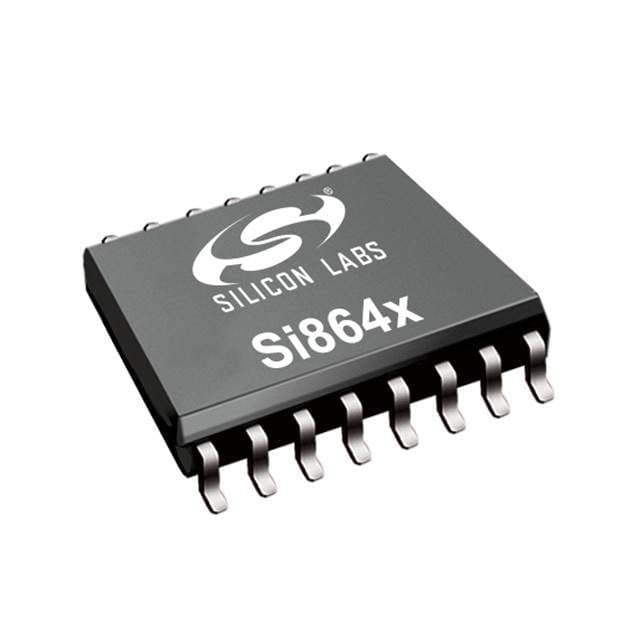

Product Images
