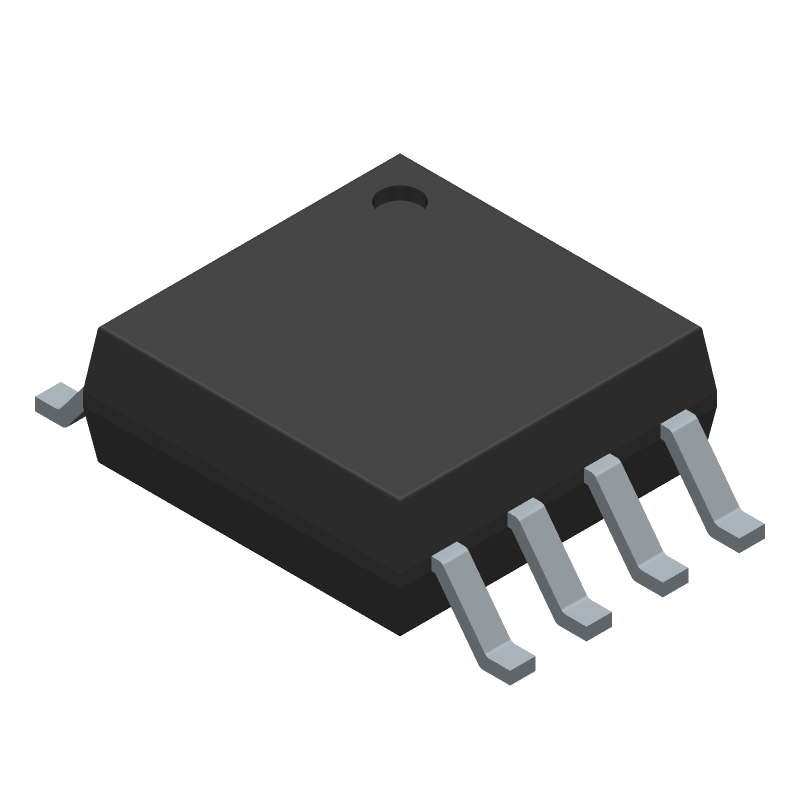

8 Mbit Serial Flash memory IC, operating from a 2.7V to 3.6V supply, features a maximum clock frequency of 50MHz. This industrial temperature grade component offers 8,388,608 words of storage and is housed in an 8-terminal SOIC package with a width and length of 5.275mm. Maximum operating temperature reaches 85°C, with a minimum of -40°C, and a maximum supply current of 0.03A.
Quick Jump:
Technical Specifications
Silicon Storage SST25VF080B-50-4I-S2AF technical specifications.
General
Max Operating Temperature
85
Number of Terminals
8
Min Operating Temperature
-40
Terminal Position
DUAL
JEDEC Package Code
S-PDSO-G8
Width
5.275
Length
5.275
Pin Count
8
Number of Functions
1
Temperature Grade
INDUSTRIAL
Supply Voltage-Nom (Vsup)
3
Supply Voltage-Max (Vsup)
3.6
Supply Voltage-Min (Vsup)
2.7
Supply Current-Max
0.03
Number of Words
8388608
Number of Words Code
8000000
Memory IC Type
FLASH
Parallel/Serial
SERIAL
Standby Current-Max
0.00002
Clock Frequency-Max (fCLK)
50
Compliance
RoHS
Yes
Eccn Code
EAR99
HTS Code
8542.32.00.51
REACH
unknown
Military Spec
False
Datasheet
Silicon Storage SST25VF080B-50-4I-S2AF Datasheet
Download the complete datasheet for Silicon Storage SST25VF080B-50-4I-S2AF to view detailed technical specifications.
