Surface mount PIN diode featuring a 20V reverse voltage and 100mA forward current. Designed for RF applications, this single PIN diode offers a maximum operating temperature of 150°C and a power dissipation of 250mW. Encased in a compact 0402 (1005 metric) package, it supports a maximum current rating of 150mA and is RoHS compliant and lead-free.
Package0402
MountingSurface Mount
Power250mW
Quick Jump:
Technical Specifications
Skyworks Solutions SMP1330-040LF technical specifications.
General
Case Code (Imperial)
0402
Case Code (Metric)
1005
Package/Case
0402
Diode Type
PIN - Single
Forward Current
100mA
Lead Free
Lead Free
Max Current Rating
150mA
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Power Dissipation
750mW
Mount
Surface Mount
Packaging
Tape and Reel
Power Dissipation
250mW
Radiation Hardening
No
Reverse Voltage
20V
Reverse Voltage (DC)
20V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Skyworks Solutions SMP1330-040LF Datasheet
Download the complete datasheet for Skyworks Solutions SMP1330-040LF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

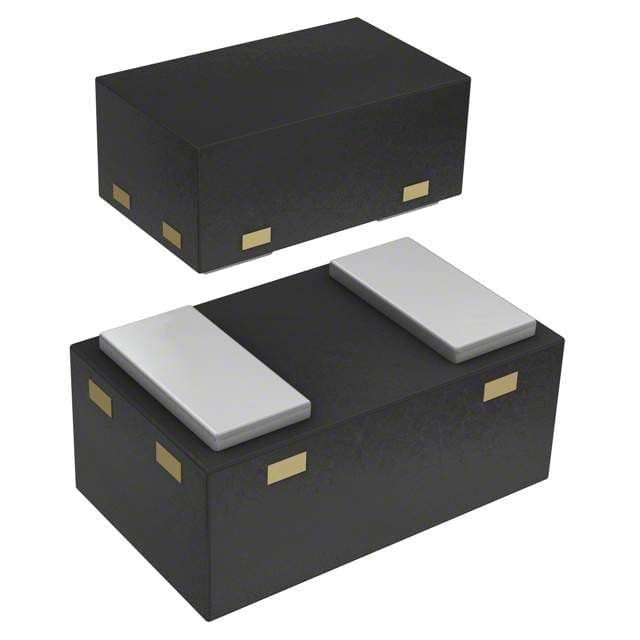

Product Images
