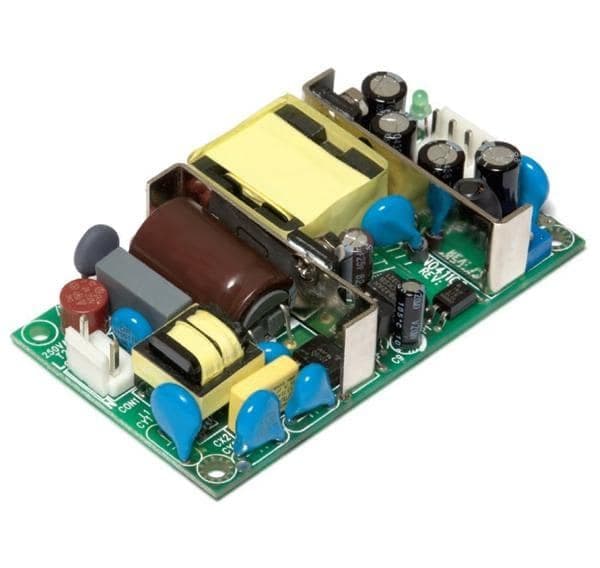

GECA20-5G

20W 5.1V 4A AC/DC Power Supply, Single Output

20W AC/DC power supply, single output, delivering 5.1V at 4A. Features 80% efficiency and a 20W maximum output power. Chassis, panel, and screw mountable with a 6-pin configuration. Operates from 0°C to 45°C, is RoHS compliant, and lead-free. Dimensions: 3.5-inch length, 2-inch width, 0.85-inch height, 51mm depth.

MountingChassis Mount, Panel, Screw

Power20W

Quick Jump:

Technical Specifications

SL Power GECA20-5G technical specifications.

General

Approvals	CE, CB
Current - Output 1	4A
Depth	51mm
Efficiency	80%
Height	0.85inch
Lead Free	Lead Free
Length	3.5inch
Max Current Rating	500mA
Max Operating Temperature	45°C
Min Operating Temperature	0°C
Max Output Current	4A
Max Output Power	20W
Max Power Dissipation	20W
Mount	Chassis Mount, Panel, Screw
Number of Outputs	1
Output Current	4A
Output Power	20W
Output Voltage	5.1V
Package Quantity	60
Packaging	Bulk
RoHS Compliant	Yes
Series	GECA20
Voltage - Output 1	5.1V
Weight	227g
Width	2inch
