256Mb NOR Flash memory with a 90ns access time. Features a 24-bit address bus and 16-bit word size, offering parallel interface connectivity. Designed for surface mount applications in a TSOP package, operating from 2.7V to 3.6V supply voltage. This RoHS compliant component is suitable for a wide temperature range of -40°C to 85°C.
PackageTSOP
Current60mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Spansion S29GL256S90TFI020 technical specifications.
General
Access Time
90ns
Access Time-Max
90ns
Address Bus Width
24b
Package/Case
TSOP
Density
256Mb
Interface
Parallel
Lead Free
Lead Free
Max Operating Temperature
85°C
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH, , NOR
Min Operating Temperature
-40°C
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Words
16777216
Package Quantity
91
Packaging
Tray
Page Size
32B
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
GL-S
Supply Current
60mA
Sync/Async
Asynchronous
Word Size
16b
Compliance
RoHS
Compliant
Datasheet
Spansion S29GL256S90TFI020 Datasheet
Download the complete datasheet for Spansion S29GL256S90TFI020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

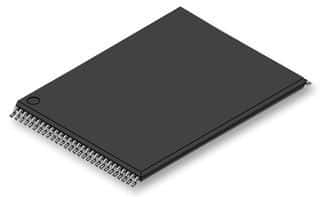

Product Images
