SSI Technologies
P51-100-G-A-I36-5V-000-000

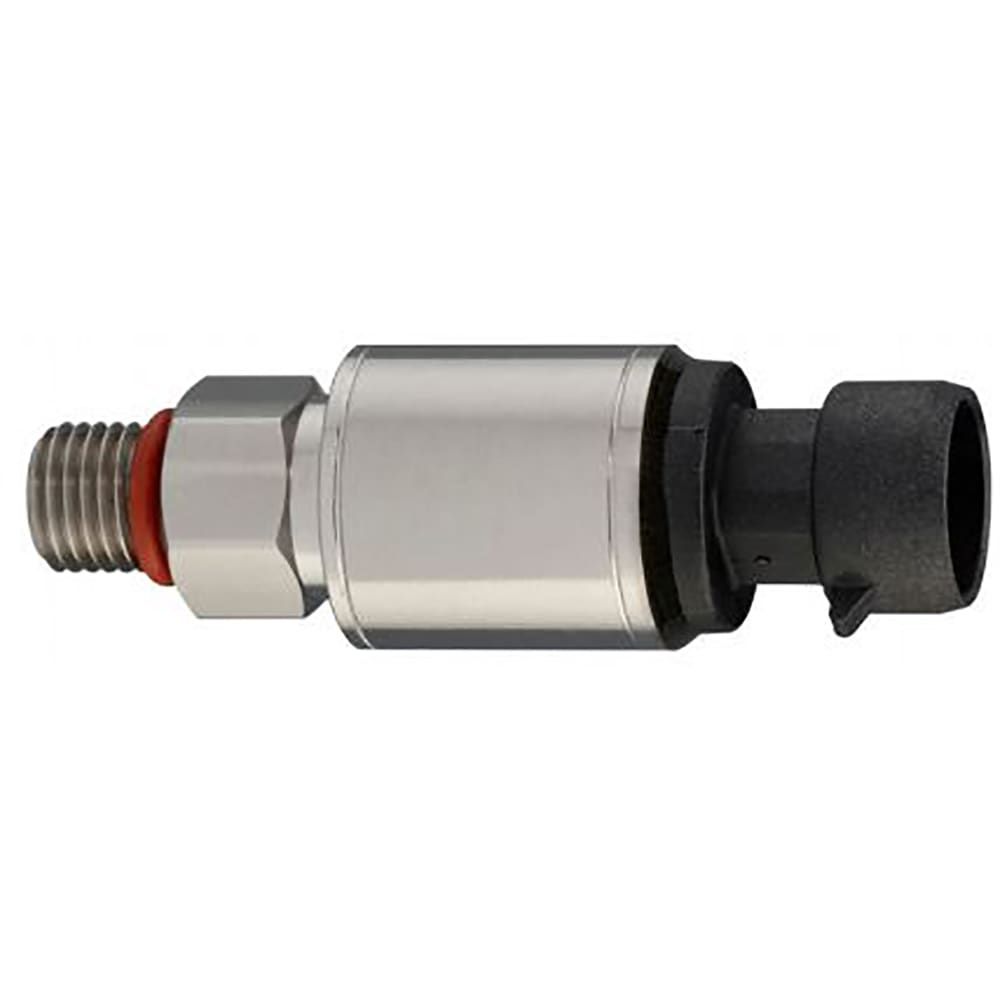

100PSI Vented Gauge Pressure Sensor, 0.5% Acc, 5V Analog Out
Analog voltage output pressure sensor with 100 PSI operating pressure and 0.5% accuracy. Features a threaded port style and vented gauge pressure type, operating within a -40°C to 105°C temperature range. Termination is via cable.
Quick Jump:
Technical Specifications
SSI Technologies P51-100-G-A-I36-5V-000-000 technical specifications.
General
Accuracy
0.5%
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Operating Pressure
100PSI
Output Type
Analog Voltage
Port Style
Threaded
Pressure Type
Vented Gauge
Series
MediaSensor™
Termination
Cable
Compliance
RoHS
Compliant
Datasheet
SSI Technologies P51-100-G-A-I36-5V-000-000 Datasheet
Download the complete datasheet for SSI Technologies P51-100-G-A-I36-5V-000-000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
