PackageConformal
Resistance270kR
MountingThrough Hole, Axial
Quick Jump:
Technical Specifications
Stackpole Electronics CF14JT270K technical specifications.
General
| Package/Case | Conformal |
| Construction | Cylindrical |
| Contact Plating | Tin, Matte |
| Diameter | 2.3mm |
| Features | Flame Retardant Coating |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 250mW |
| Mount | Through Hole, Axial |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 270kR |
| RoHS Compliant | Yes |
| Series | CF |
| Termination | Axial |
| Tolerance | 5% |
Compliance
| RoHS | Compliant |
Datasheet
Stackpole Electronics CF14JT270K Datasheet
Download the complete datasheet for Stackpole Electronics CF14JT270K to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

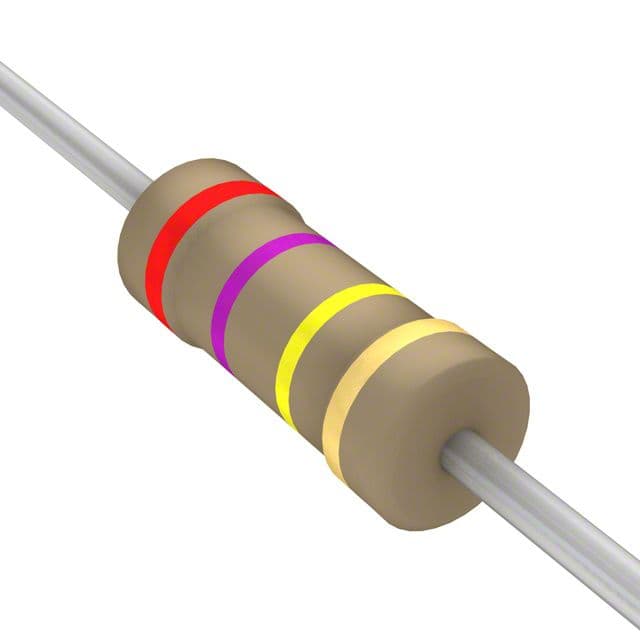

Product Images
