PackageAxial
Resistance2.2kR
MountingThrough Hole, Axial
Quick Jump:
Technical Specifications
Stackpole Electronics CFM12JT2K20 technical specifications.
General
| Package/Case | Axial |
| Contact Plating | Tin, Matte |
| Diameter | 2.3mm |
| Features | Flame Retardant Coating |
| Lead Free | Lead Free |
| Length | 0.256inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Mount | Through Hole, Axial |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 2.2kR |
| RoHS Compliant | Yes |
| Series | CFM |
| Tolerance | 5% |
Compliance
| RoHS | Compliant |
Datasheet
Stackpole Electronics CFM12JT2K20 Datasheet
Download the complete datasheet for Stackpole Electronics CFM12JT2K20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

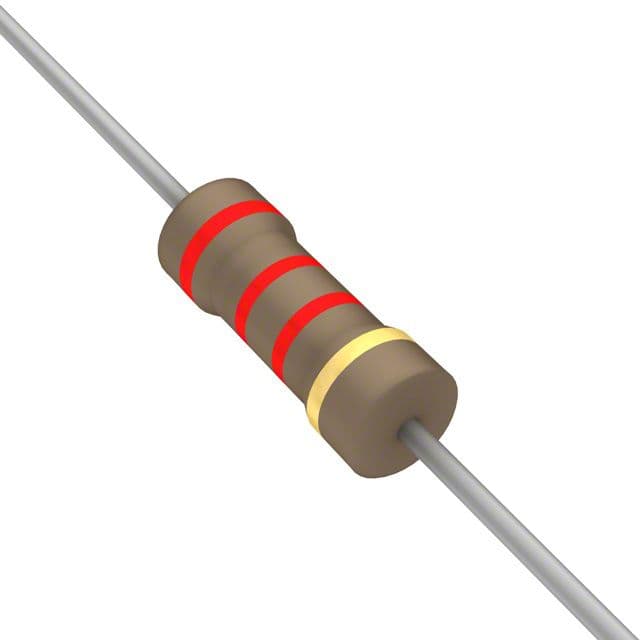

Product Images
