Surface mount chip resistor with 1mR resistance and 1% tolerance. Features 1.5W maximum power dissipation and a 2010 case code (5025 metric). Operates from -55°C to 170°C with tin, matte contact plating. Moisture resistant and lead-free, this RoHS compliant component is ideal for demanding applications.
Package2010
Resistance1mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Stackpole Electronics CSNL2010FT1L00 technical specifications.
General
Case Code (Imperial)
2010
Case Code (Metric)
5025
Package/Case
2010
Contact Plating
Tin, Matte
Features
Moisture Resistant
Height
0.041inch
Lead Free
Lead Free
Length
0.2inch
Max Operating Temperature
170°C
Min Operating Temperature
-55°C
Max Power Dissipation
1.5W
Mount
Surface Mount
Number of Terminations
2
Packaging
Cut Tape
Radiation Hardening
No
Resistance
1mR
RoHS Compliant
Yes
Series
CSNL
Tolerance
1%
Width
0.1inch
Compliance
RoHS
Compliant
Datasheet
Stackpole Electronics CSNL2010FT1L00 Datasheet
Download the complete datasheet for Stackpole Electronics CSNL2010FT1L00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

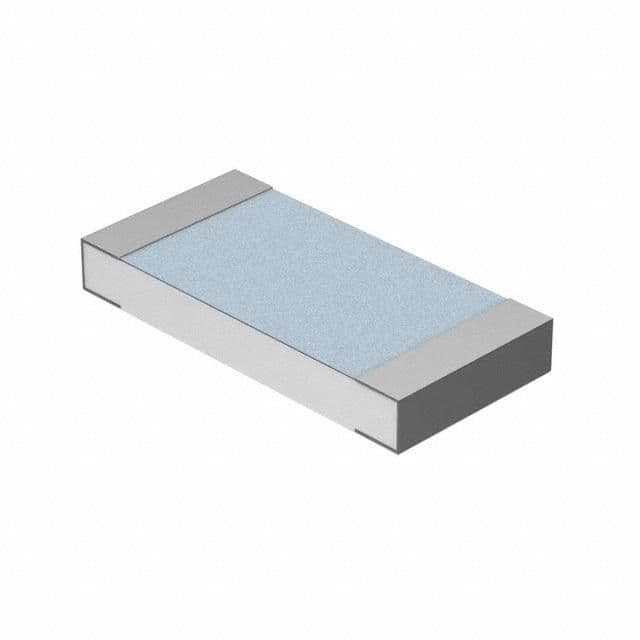

Product Images
