Surface mount chip resistor with 1mR resistance and 1% tolerance. Features 2W maximum power dissipation and a 2512 case code. Operates from -55°C to 170°C, with tin matte contact plating and moisture resistance. Lead-free and RoHS compliant.
Package2512
Resistance1mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Stackpole Electronics CSNL2512FT1L00 technical specifications.
General
Case Code (Imperial)
2512
Case Code (Metric)
6432
Package/Case
2512
Contact Plating
Tin, Matte
Features
Moisture Resistant
Height
0.033inch
Lead Free
Lead Free
Length
0.25inch
Max Operating Temperature
170°C
Min Operating Temperature
-55°C
Max Power Dissipation
2W
Mount
Surface Mount
Number of Terminations
2
Packaging
Cut Tape
Radiation Hardening
No
Resistance
1mR
RoHS Compliant
Yes
Series
CSNL
Size Code
2512
Tolerance
1%
Width
0.125inch
Compliance
RoHS
Compliant
Datasheet
Stackpole Electronics CSNL2512FT1L00 Datasheet
Download the complete datasheet for Stackpole Electronics CSNL2512FT1L00 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

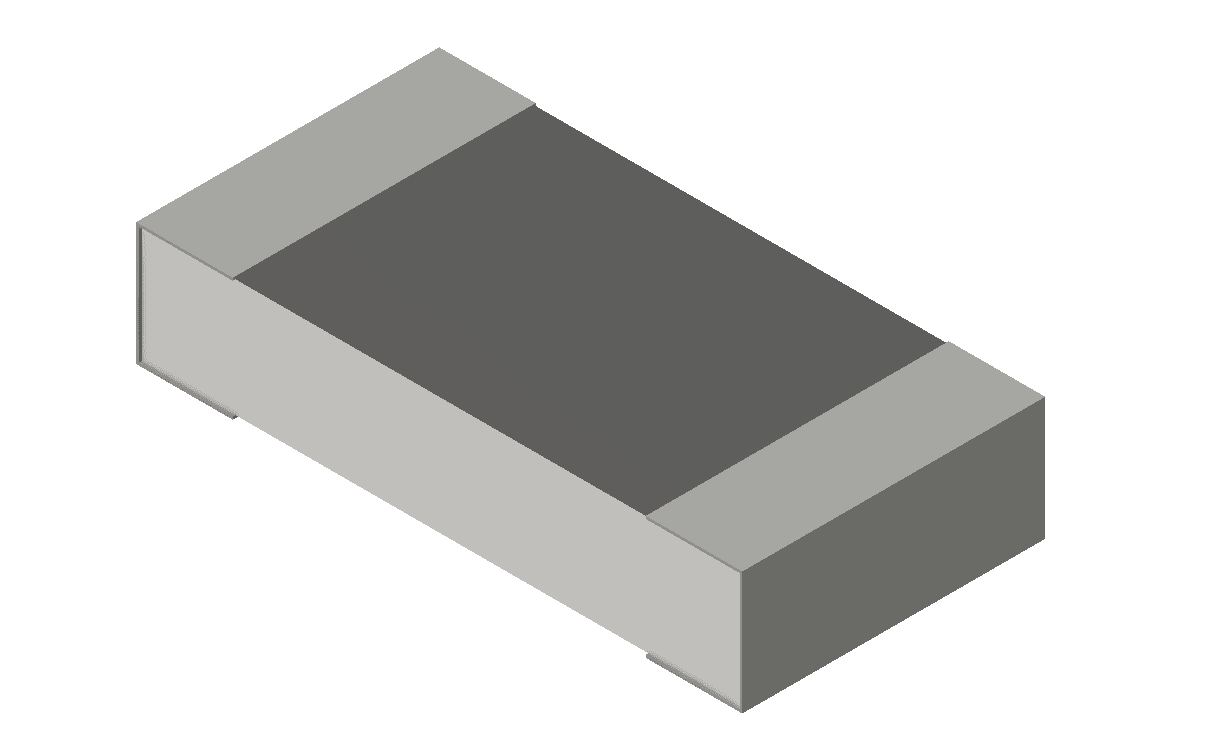

Product Images
