Surface mount chip resistor with 500mΩ resistance and 1% tolerance. Features 500mW power dissipation in a 1206 case size (3216 metric). Operates from -55°C to 155°C with tin, matte contact plating. This lead-free, RoHS compliant component is supplied on tape and reel.
Package1206
Resistance500mR
MountingSurface Mount
Quick Jump:
Technical Specifications
Stackpole Electronics CSR1206FTR500 technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Contact Plating
Tin, Matte
Height
0.026inch
Lead Free
Lead Free
Length
0.12inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
500mW
Mount
Surface Mount
Number of Terminations
2
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
500mR
RoHS Compliant
Yes
Series
CSR
Size Code
1206
Tolerance
1%
Width
0.061inch
Compliance
RoHS
Compliant
Datasheet
Stackpole Electronics CSR1206FTR500 Datasheet
Download the complete datasheet for Stackpole Electronics CSR1206FTR500 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

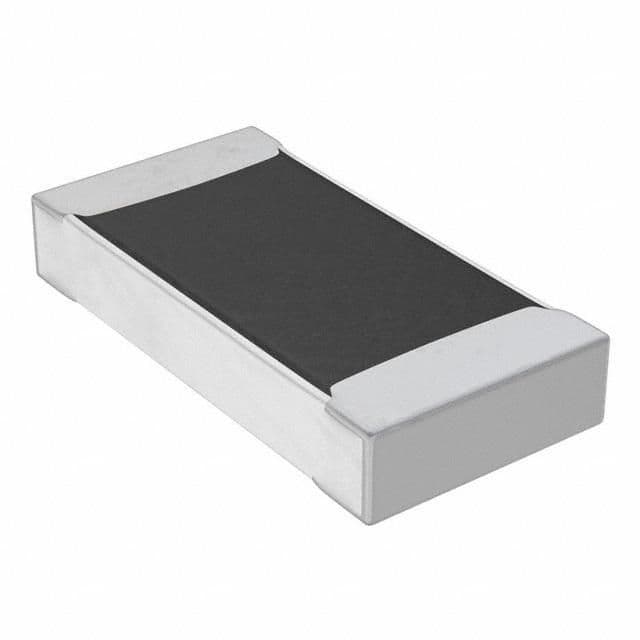

Product Images
