PackageRadial
Resistance120R
MountingThrough Hole
Quick Jump:
Technical Specifications
Stackpole Electronics PCF14JT120R technical specifications.
General
Package/Case
Radial
Contact Plating
Tin, Matte
Diameter
2.3mm
Features
Flame Retardant Coating
Length
6.5mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Mount
Through Hole
Number of Terminations
2
Packaging
Tape and Reel
Resistance
120R
RoHS Compliant
Yes
Series
CF
Tolerance
5%
Compliance
RoHS
Compliant
Datasheet
Stackpole Electronics PCF14JT120R Datasheet
Download the complete datasheet for Stackpole Electronics PCF14JT120R to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

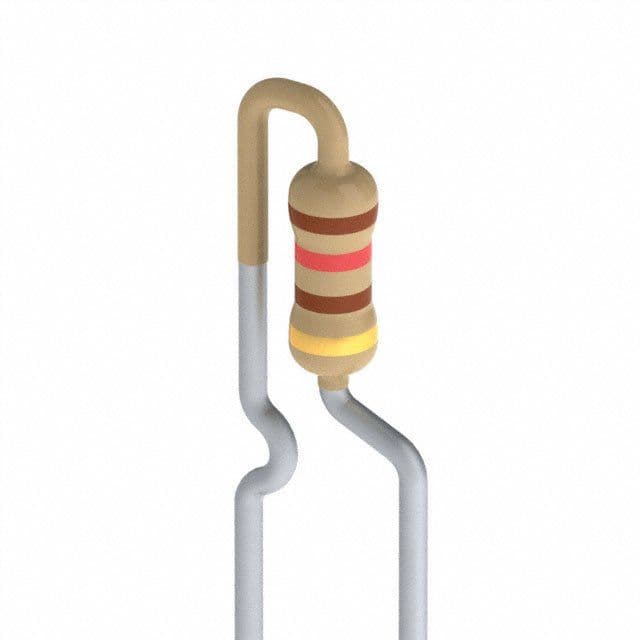

Product Images
