Standex-Meder Electronics
DIL05-2C90-63L
Dry Reed Relay, 2 Form C, SPDT, Momentary, 0.033A (Coil), 5VDC (Coil), 167mW (Coil), 0.25A (Contact), 175VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Standex-Meder Electronics DIL05-2C90-63L technical specifications.
General
| Package/Case | DIP |
| Coil Current | 33.4mA |
| Coil Resistance | 150R |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 5V |
| Contact Current Rating | 250mA |
| Contact Material | Rhodium |
| Depth | 10.2mm |
| Height | 10.2mm |
| Length | 20.1mm |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Mount | Through Hole |
| Operate Time | 0.7ms |
| Package Quantity | 25 |
| Packaging | Rail/Tube |
| Release Time | 1.5ms |
| RoHS Compliant | Yes |
| Series | DIL |
| Termination | PC Pin |
| Throw Configuration | DPDT |
Compliance
| RoHS | Compliant |
Datasheet
Standex-Meder Electronics DIL05-2C90-63L Datasheet
Download the complete datasheet for Standex-Meder Electronics DIL05-2C90-63L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

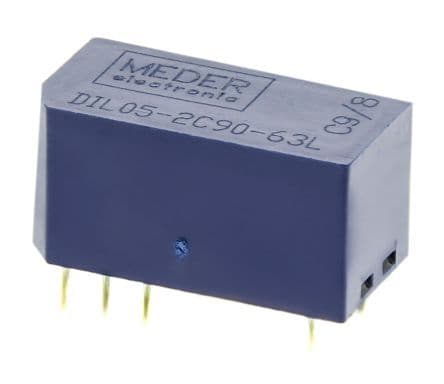

Product Images
