Rectangular photoelectric sensor, surface mount, featuring a magnetic sensing method. This SPST component operates with a 200V DC rated voltage and a 1.25A current rating. It offers a fast 0.5ms operate time and 0.05ms release time, with a low capacitance of 0.3pF. Designed for a wide temperature range from -40°C to 130°C, it is lead-free and RoHS compliant, supplied in tape and reel packaging.
Current1.25A
Capacitance0.3pF
Current Rating1.25A
MountingSurface Mount
Quick Jump:
Technical Specifications
Standex-Meder Electronics MK15-E-2 technical specifications.
General
Capacitance
0.3pF
Current Rating
1.25A
Lead Free
Lead Free
Max Operating Temperature
130°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Operate Time
0.5ms
Operating Supply Voltage
200V
Package Quantity
2500
Packaging
Tape and Reel
Release Time
0.05ms
RoHS Compliant
Yes
Sensing Method
Magnetic
Series
MK15
Supply Current
1.25A
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
200V
Compliance
RoHS
Compliant
Datasheet
Standex-Meder Electronics MK15-E-2 Datasheet
Download the complete datasheet for Standex-Meder Electronics MK15-E-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

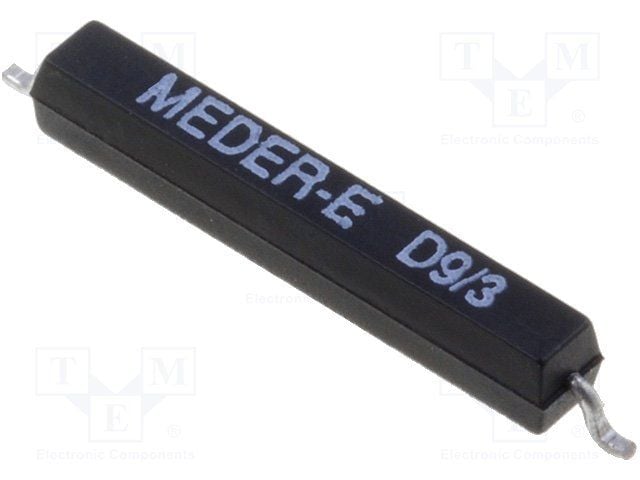

Product Images
