PackageNonstandard
Current Rating70A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Standex-Meder Electronics PQ3218-3R3-70-T technical specifications.
General
Package/Case
Nonstandard
Current Rating
70A
DC Resistance (DCR)
1.1mR
Height
18mm
Height - Seated (Max)
0.728inch
Inductance
3.3uH
Length
1.26inch
Max DC Current
80A
Max Operating Temperature
125°C
Min Operating Temperature
-30°C
Mount
Surface Mount
Package Quantity
25
Packaging
Bulk
Saturation Current
80A
Series
PQ
Shielding
Unshielded
Termination
SMD/SMT
Width
0.885inch
Compliance
RoHS
Not Compliant
Datasheet
Standex-Meder Electronics PQ3218-3R3-70-T Datasheet
Download the complete datasheet for Standex-Meder Electronics PQ3218-3R3-70-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

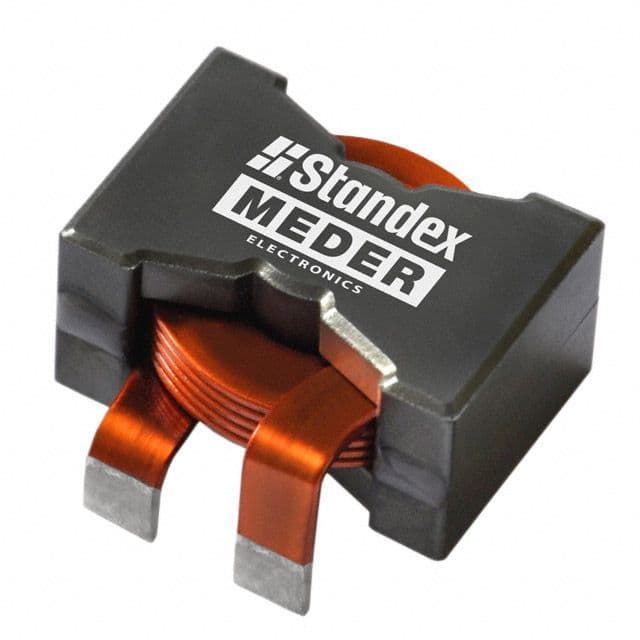

Product Images
