PackageDIP
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Stmicroelectronics 74AC574B technical specifications.
General
| Package/Case | DIP |
| High Level Output Current | -24mA |
| Input Type | SINGLE-ENDED |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 24mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Supply Voltage | 6V |
| Min Supply Voltage | 2V |
| Number of Circuits | 8 |
| Number of Input Lines | 8 |
| Number of Output Lines | 3 |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 13.5ns |
| RoHS Compliant | Yes |
| Series | 74AC574 |
Compliance
| RoHS | Compliant |
Datasheet
Stmicroelectronics 74AC574B Datasheet
Download the complete datasheet for Stmicroelectronics 74AC574B to view detailed technical specifications.
No datasheet is available for this part.

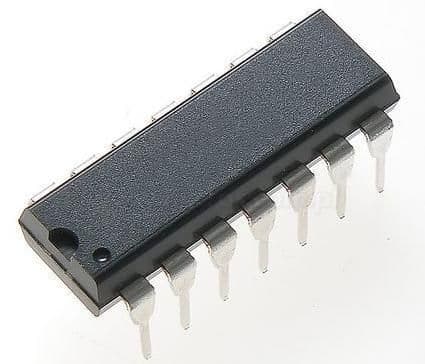

Product Images
