Struthers-Dunn
219BBXPLM-120VAC
Power/Signal Relay, 4PDT, Momentary, 4250mW (Coil), 10A (Contact), 28VDC (Contact), AC Input, AC/DC Output, Socket Mount,
Current Rating10A
MountingPlug-In, Socket
Quick Jump:
Technical Specifications
Struthers-Dunn 219BBXPLM-120VAC technical specifications.
General
Approvals
UL, CSA
Coil Current
40mA
Coil Resistance
540R
Coil Type
Non-Latching
Coil Voltage (AC)
120V
Contact Current Rating
10A
Contact Material
Silver
Current Rating
10A
Height
65.7mm
Max Current Rating
10A
Max Operating Temperature
60°C
Min Operating Temperature
-20°C
Max Voltage Rating (AC)
120V
Max Voltage Rating (DC)
28V
Mount
Plug-In, Socket
Reach SVHC Compliant
Unknown
Relay Type
General Purpose
RoHS Compliant
No
Throw Configuration
DPST, DPDT
Voltage Rating (AC)
240V
Width
64.1mm
Compliance
RoHS
Not Compliant
Datasheet
Struthers-Dunn 219BBXPLM-120VAC Datasheet
Download the complete datasheet for Struthers-Dunn 219BBXPLM-120VAC to view detailed technical specifications.
No datasheet is available for this part.

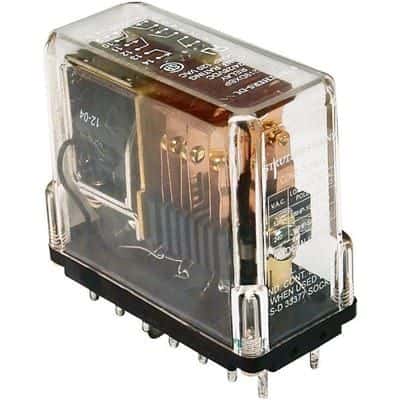

Product Images
