Surface mount fixed inductor featuring a shielded drum core construction. Offers 22µH inductance with a 20% tolerance, tested at 100kHz. Rated for 1.44A DC current with a low 135mΩ DC resistance. Housed in a compact 2020 case code, this ferrite core component operates from -40°C to 105°C and is RoHS compliant.
Package2020
Current Rating1.44A
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
Sumida CDPH4D19FNP-220MC technical specifications.
General
Case Code (Imperial)
2020
Package/Case
2020
Core Material
Ferrite
Current Rating
1.44A
DC Current
1.44A
DC Resistance (DCR)
135mR
Depth
5.2mm
Height
2mm
Height - Seated (Max)
0.079inch
Inductance
22uH
Lead Free
Lead Free
Length
5.2mm
Max DC Current
540mA
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
540mA
RoHS Compliant
Yes
Saturation Current
540mA
Series
CDPH4D19F
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
0.193inch
Compliance
RoHS
Compliant
Datasheet
Sumida CDPH4D19FNP-220MC Datasheet
Download the complete datasheet for Sumida CDPH4D19FNP-220MC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

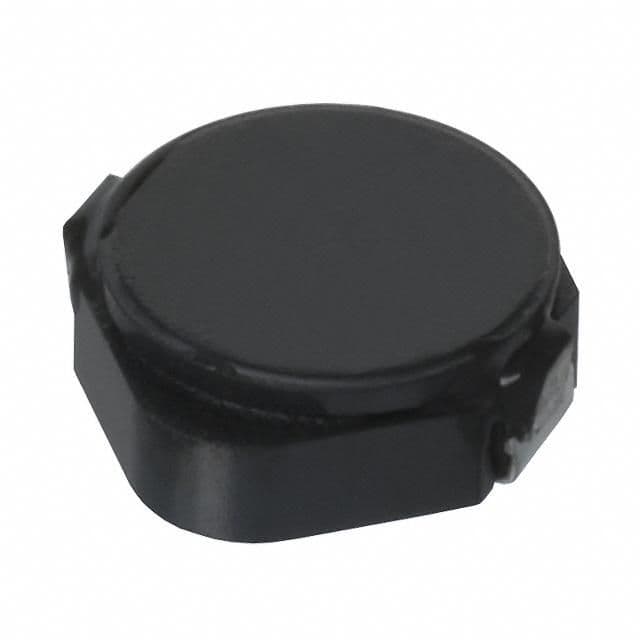

Product Images
