Sumida
CDRH105RNP-3R3NC
Inductor Power Shielded Drum Core 3.3uH 30% 100KHz Ferrite 6.5A 0.0104Ohm DCR T/R
PackageNonstandard
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Sumida CDRH105RNP-3R3NC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
10.4mR
Depth
10.3mm
Height
5.1mm
Inductance
3.3uH
Length
10.5mm
Max DC Current
6.5A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
7.8A
Series
CDRH105R
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Weight
0.063493oz
Width
10.3mm
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH105RNP-3R3NC Datasheet
Download the complete datasheet for Sumida CDRH105RNP-3R3NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

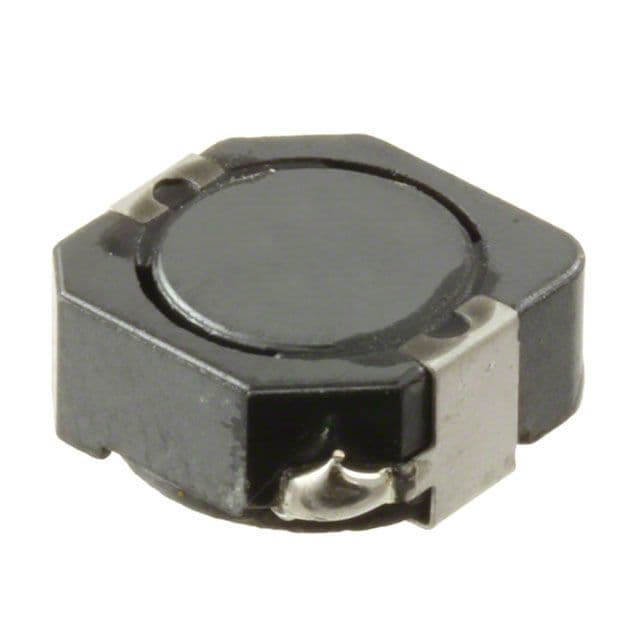

Product Images
