Surface mount shielded drum core inductor featuring 6.1µH inductance with a ±40% tolerance, tested at 100kHz. This ferrite core component offers a maximum DC current rating of 6.6A and a low DC resistance (DCR) of 17.6mΩ. Designed for surface mounting with SMD/SMT termination, it operates within a temperature range of -40°C to 100°C and is RoHS compliant.
PackageNonstandard
Current Rating6.6A
MountingSurface Mount
Inductance6.1uH
Quick Jump:
Technical Specifications
Sumida CDRH127NP-6R1NC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
6.6A
DC Current
6.6A
DC Resistance (DCR)
17.6mR
Depth
12.3mm
Height
8mm
Height - Seated (Max)
0.315inch
Inductance
6.1uH
Lead Free
Lead Free
Length
12.3mm
Max DC Current
6.6A
Max Operating Temperature
100°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
6.6A
RoHS Compliant
Yes
Series
CDRH127
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
40%
Weight
0.126986oz
Width
0.472inch
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH127NP-6R1NC Datasheet
Download the complete datasheet for Sumida CDRH127NP-6R1NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

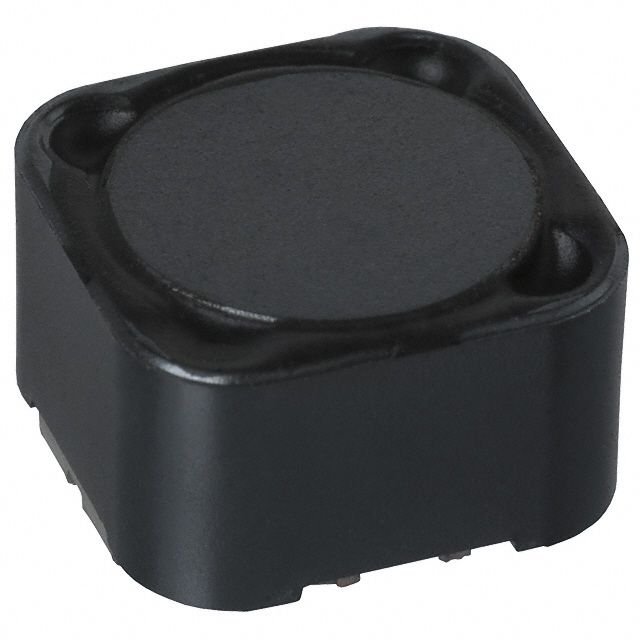

Product Images
