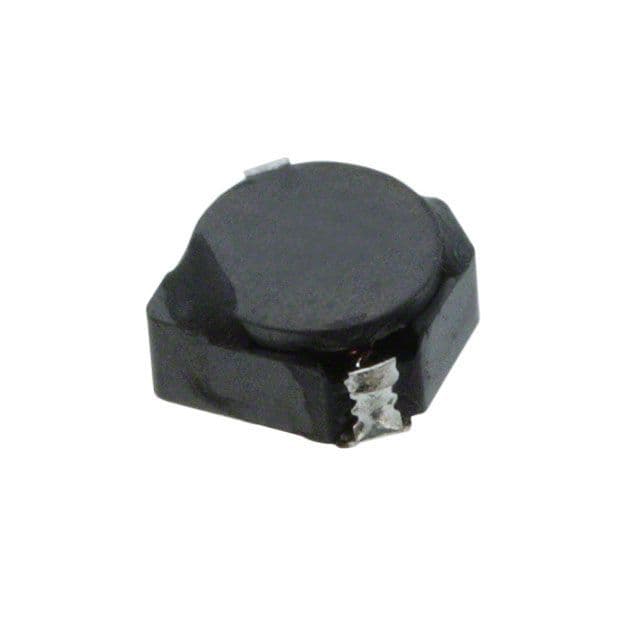

Surface mount shielded drum core inductor with 22µH inductance and 30% tolerance, designed for power applications. Features a ferrite core, 600mA rated DC current, and a low DC resistance of 424mΩ. Operating temperature range from -40°C to 105°C, with a 1515 package size. Supplied on tape and reel for automated assembly.
PackageNonstandard
MountingSurface Mount
Inductance22uH
Quick Jump:
Technical Specifications
Sumida CDRH3D18NP-220NC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
424mR
Depth
4mm
Height
2mm
Inductance
22uH
Lead Free
Lead Free
Length
4mm
Max DC Current
600mA
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
600mA
RoHS Compliant
Yes
Saturation Current
600mA
Series
CDRH3D18
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH3D18NP-220NC Datasheet
Download the complete datasheet for Sumida CDRH3D18NP-220NC to view detailed technical specifications.
