Surface mount shielded power inductor featuring a ferrite core and 4.7µH inductance with a 25% tolerance. This component offers a 1.9A DC current rating and a saturation current of 1.3A, with a low DC resistance of 68.8mΩ at a test frequency of 100kHz. Designed for surface mounting, it operates within a temperature range of -40°C to 105°C and is provided in tape and reel packaging.
PackageNonstandard
Current Rating1.9A
MountingSurface Mount
Inductance4.7uH
Quick Jump:
Technical Specifications
Sumida CDRH3D23NP-4R7PC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
1.9A
DC Current
1.9A
DC Resistance (DCR)
68.8mR
Depth
3.92mm
Height
2.5mm
Height - Seated (Max)
0.098inch
Inductance
4.7uH
Lead Free
Lead Free
Length
3.92mm
Max DC Current
1.9A
Max Operating Temperature
105°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
500
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
1.3A
RoHS Compliant
Yes
Saturation Current
1.3A
Series
CDRH3D23
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
25%
Weight
0.003951oz
Width
0.15inch
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH3D23NP-4R7PC Datasheet
Download the complete datasheet for Sumida CDRH3D23NP-4R7PC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

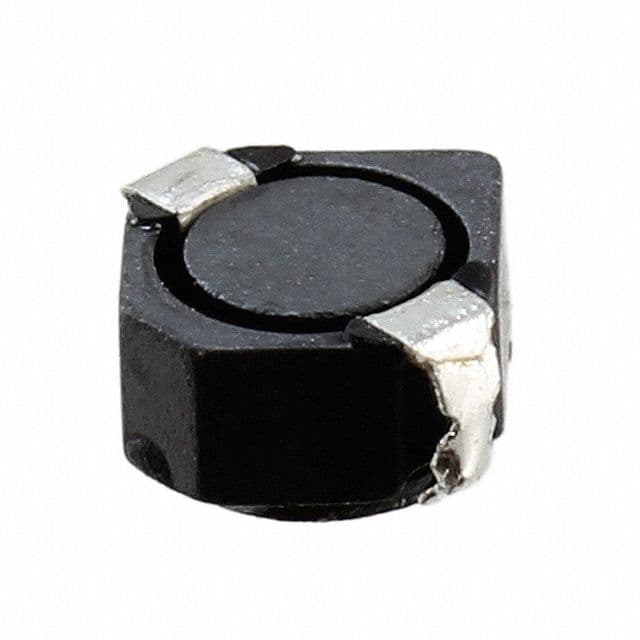

Product Images
