Sumida
CDRH3D23NP-8R2PC
Inductor Power Shielded Drum Core 8.2uH 25% 100KHz Ferrite 1.6A 0.0948Ohm DCR T/R
PackageNonstandard
MountingSurface Mount
Inductance8.2uH
Quick Jump:
Technical Specifications
Sumida CDRH3D23NP-8R2PC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Resistance (DCR)
94.8mR
Depth
3.92mm
Height
2.5mm
Inductance
8.2uH
Max DC Current
1.6A
Max Operating Temperature
105°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Saturation Current
950mA
Series
CDRH3D23
Shielding
Shielded
Test Frequency
100kHz
Tolerance
25%
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH3D23NP-8R2PC Datasheet
Download the complete datasheet for Sumida CDRH3D23NP-8R2PC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

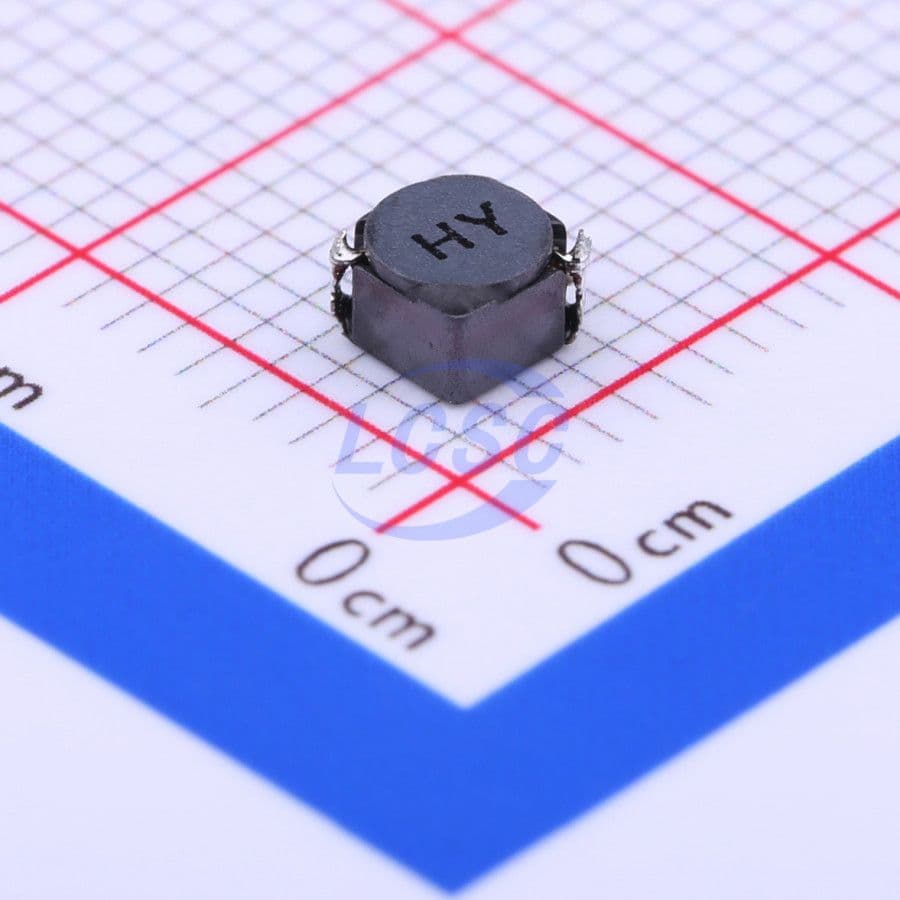

Product Images
