Surface mount shielded drum core inductor with 3.3µH inductance and 30% tolerance, tested at 100kHz. Features a 2.3A current rating and 20.3mΩ DC resistance. Operates from -40°C to 100°C, housed in a ferrite core and packaged on tape and reel.
PackageNonstandard
Current Rating2.3A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Sumida CDRH5D28RNP-3R3NC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
2.3A
DC Resistance (DCR)
20.3mR
Depth
6.2mm
Height
3mm
Height - Seated (Max)
0.118inch
Inductance
3.3uH
Lead Free
Lead Free
Length
0.236inch
Max DC Current
2.3A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Series
CDRH5D28R
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Weight
0.01411oz
Width
0.232inch
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH5D28RNP-3R3NC Datasheet
Download the complete datasheet for Sumida CDRH5D28RNP-3R3NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

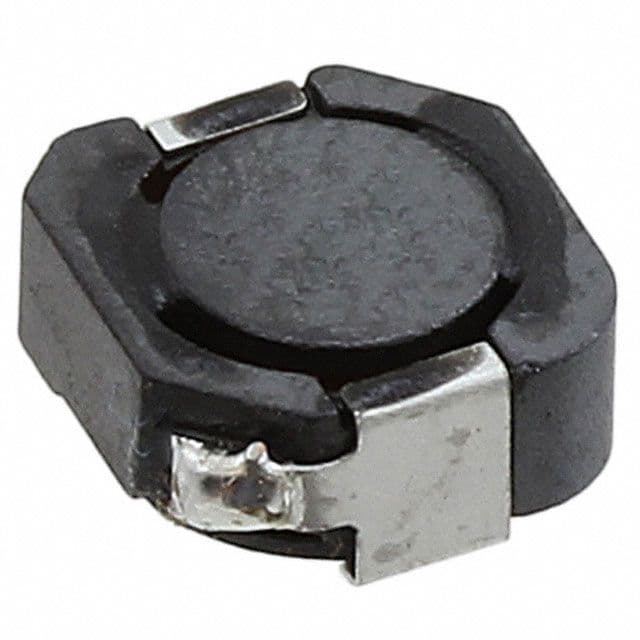

Product Images
