Surface mount shielded drum core inductor with 3.9µH inductance and 30% tolerance, designed for 100kHz operation. Features a ferrite core, 2.6A maximum DC current rating, and a low 27mΩ DC resistance. Operates across a -40°C to 100°C temperature range and is supplied in tape and reel packaging.
PackageNonstandard
MountingSurface Mount
Inductance3.9uH
Quick Jump:
Technical Specifications
Sumida CDRH6D28NP-3R9NC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Current
2.6A
DC Resistance (DCR)
27mR
Depth
7mm
Height
3mm
Inductance
3.9uH
Lead Free
Lead Free
Length
7mm
Max DC Current
2.6A
Max Operating Temperature
100°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1500
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
2.6A
RoHS Compliant
Yes
Series
CDRH6D28
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH6D28NP-3R9NC Datasheet
Download the complete datasheet for Sumida CDRH6D28NP-3R9NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

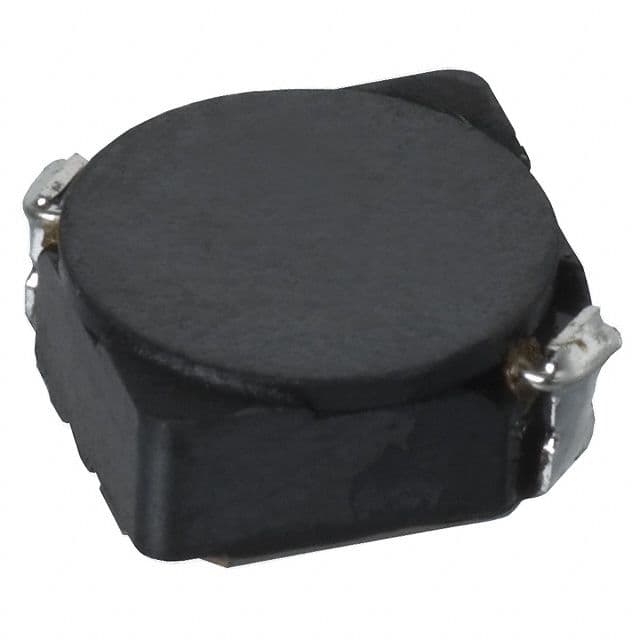

Product Images
