Surface mount shielded drum core inductor with 10µH inductance and 30% tolerance, designed for power applications. Features a ferrite core, 2A maximum DC current rating, and a low 38mΩ DC resistance. Operates across a wide temperature range of -40°C to 100°C and is supplied in tape and reel packaging.
PackageNonstandard
MountingSurface Mount
Inductance10uH
Quick Jump:
Technical Specifications
Sumida CDRH6D38NP-100NC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
DC Current
2A
DC Resistance (DCR)
38mR
Depth
7mm
Height
4mm
Inductance
10uH
Lead Free
Lead Free
Length
7mm
Max DC Current
2A
Max Operating Temperature
100°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
2A
RoHS Compliant
Yes
Series
CDRH6D38
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH6D38NP-100NC Datasheet
Download the complete datasheet for Sumida CDRH6D38NP-100NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

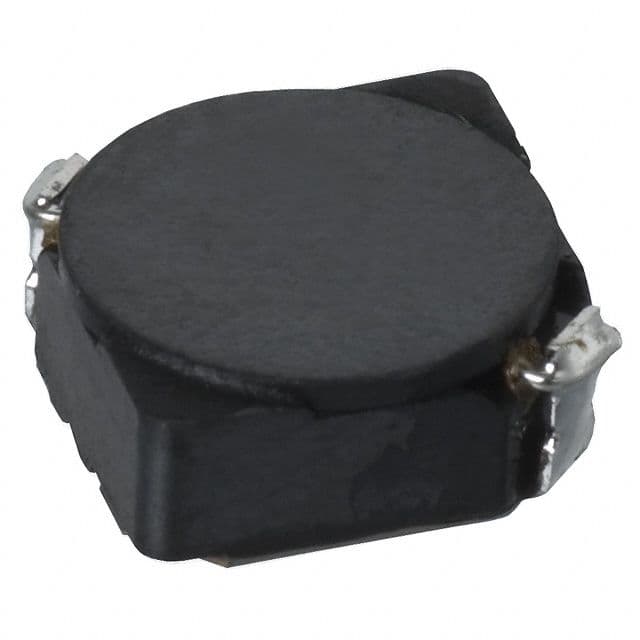

Product Images
