Shielded power inductor featuring a ferrite drum core. This surface mount component offers 3.3µH inductance with a 30% tolerance, tested at 100kHz. It handles a maximum DC current of 3.5A with a low 20mΩ DC resistance. Operating across a wide temperature range of -40°C to 100°C, this RoHS compliant inductor is supplied in tape and reel packaging.
PackageNonstandard
Current Rating3.5A
MountingSurface Mount
Inductance3.3uH
Quick Jump:
Technical Specifications
Sumida CDRH6D38NP-3R3NC technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
3.5A
DC Current
3.5A
DC Resistance (DCR)
20mR
Depth
7mm
Height
4mm
Inductance
3.3uH
Lead Free
Lead Free
Length
7mm
Max DC Current
3.5A
Max Operating Temperature
100°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1000
Packaging
Tape and Reel
Radiation Hardening
No
Rated Current-Max
3.5A
RoHS Compliant
Yes
Series
CDRH
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
30%
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Sumida CDRH6D38NP-3R3NC Datasheet
Download the complete datasheet for Sumida CDRH6D38NP-3R3NC to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

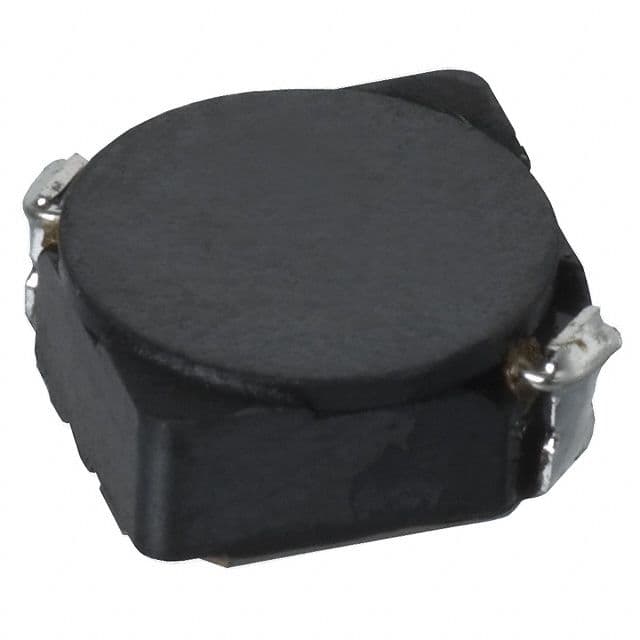

Product Images
