High-speed axial fan, 172mm diameter, 51mm depth, delivering 239 CFM airflow. Features ball bearings for durability and an alveolate motor design. Operates at 3200 RPM with a 240 VAC supply voltage, consuming 36W of power. Constructed with an aluminum housing, it offers a wide operating temperature range from 14°C to 158°C and a noise level of 58 dBA. This RoHS compliant component utilizes 2 wire leads for termination and has a flammability rating of UL94 V-0.
Frequency50|60 Hz
PackageAxial
Current Rating110mA
Power36W
Quick Jump:
Technical Specifications
Sunon A2175-HBL.TC.GN technical specifications.
General
Airflow
239CFM
Bearing Type
Ball
Package/Case
Axial
Current Rating
110mA
Depth
151mm
Flammability Rating
UL94 V-0
Height
151.5mm
Lead Free
Lead Free
Length
171.5mm
Material
Aluminium
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
26W
Noise
58dBA
Noise Level
51|58 dB
Operating Frequency
50|60 Hz
Operating Supply Voltage
240V
Power Consumption
36W
Reach SVHC Compliant
No
RoHS Compliant
Yes
RPM
3200RPM
Series
A
Termination
2 Wire Leads
Weight
2.1lb
Width
51mm
Compliance
RoHS
Compliant
Datasheet
Sunon A2175-HBL.TC.GN Datasheet
Download the complete datasheet for Sunon A2175-HBL.TC.GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

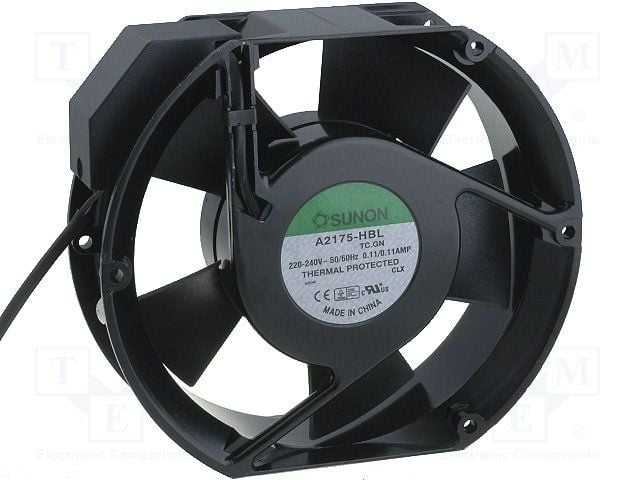

Product Images
