Axial fan, 171.5mm x 51mm, delivering 239 CFM airflow. Features ball bearing for durability and operates at 3200 RPM. Designed for 220/240VAC input with dual 50/60 Hz operating frequencies. Constructed with an aluminum frame and rated UL94 V-0 for flammability. Offers a wide operating temperature range from 14°C to 176°C. RoHS compliant and lead-free.
Frequency50|60 Hz
PackageAxial
Quick Jump:
Technical Specifications
Sunon A2175-HBT.TC.GN technical specifications.
General
Airflow
239CFM
Bearing Type
Ball
Package/Case
Axial
Depth
151mm
Flammability Rating
UL94 V-0
Height
151.5mm
Lead Free
Lead Free
Length
171.5mm
Material
Aluminium
Max Operating Temperature
176°C
Min Operating Temperature
14°C
Max Power Dissipation
26W
Noise
58dBA
Noise Level
51|58 dB
Operating Frequency
50|60 Hz
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
RPM
3200RPM
Series
A
Termination
Lead Wire
Weight
2lb
Width
51mm
Compliance
RoHS
Compliant
Datasheet
Sunon A2175-HBT.TC.GN Datasheet
Download the complete datasheet for Sunon A2175-HBT.TC.GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

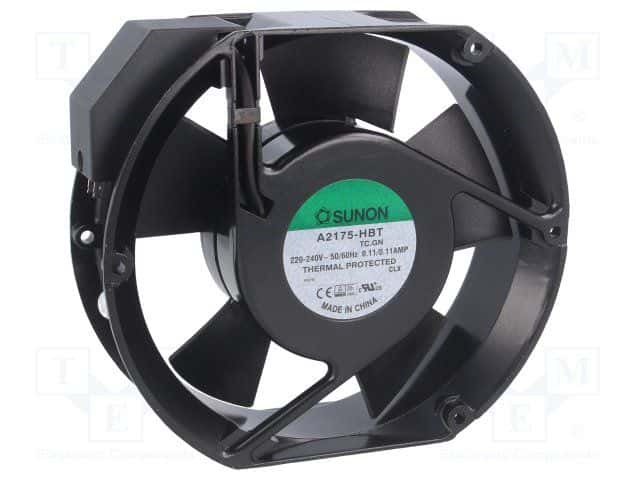

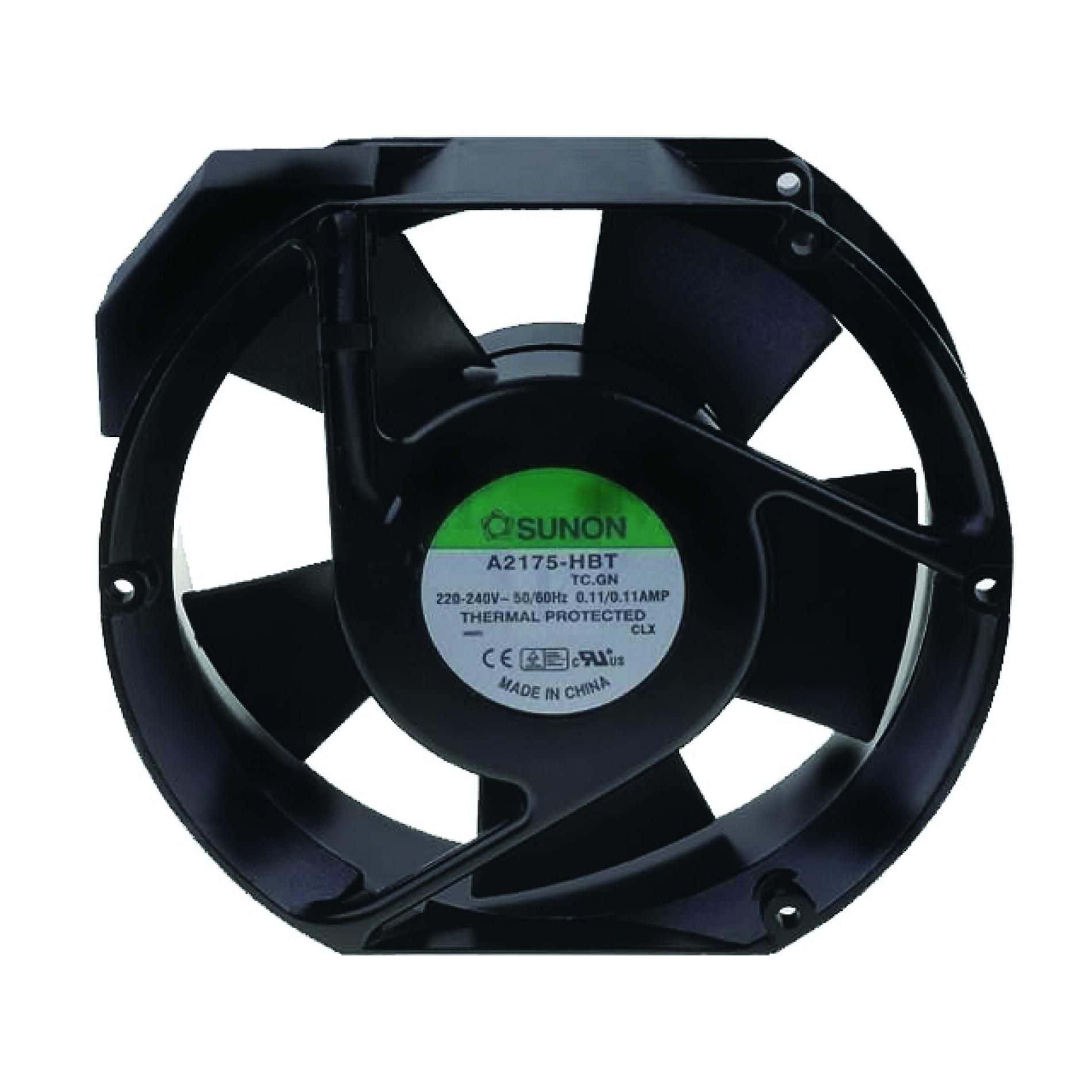

Product Images
