AC axial fan, 120mm x 120mm x 38mm, delivering 115 CFM airflow at 3100 RPM. Features a sleeve bearing and 2-wire lead termination. Operates at 220-240V AC with a 50/60 Hz frequency, consuming 21W. Constructed with an aluminum frame and rated UL94 V-0 for flammability. Maximum operating temperature is 158°C, with a noise level of 49 dBA.
Frequency50|60 Hz
PackageAxial
Current Rating120mA
Power21W
Quick Jump:
Technical Specifications
Sunon DP200A-2123XSL.GN technical specifications.
General
Airflow
115CFM
Bearing Type
Sleeve
Package/Case
Axial
Current Rating
120mA
Depth
38mm
Flammability Rating
UL94 V-0
Height
38mm
Length
120mm
Material
Aluminium
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
21W
Noise
49dBA
Noise (dB)
49dB
Noise Level
44|49 dB
Operating Frequency
50|60 Hz
Operating Supply Voltage
240V
Package Quantity
1
Power Consumption
21W
RPM
3100RPM
Series
DP
Termination
2 Wire Leads
Weight
1.2lb
Width
38mm
Compliance
RoHS
Compliant
Datasheet
Sunon DP200A-2123XSL.GN Datasheet
Download the complete datasheet for Sunon DP200A-2123XSL.GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

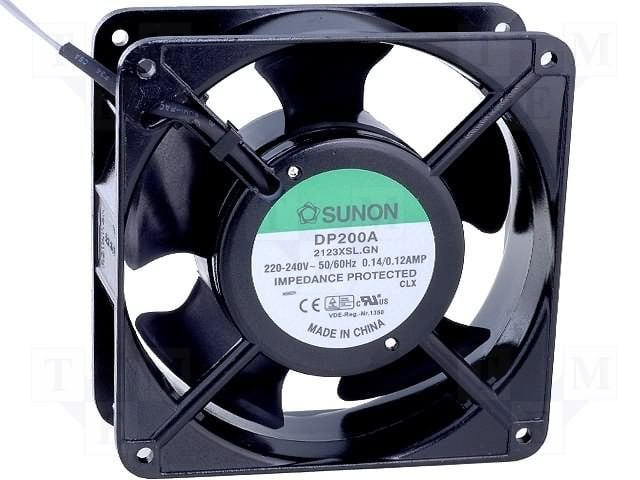

Product Images
