Technical Specifications
Sunon PF80201V3-000U-A99 technical specifications.
General
Airflow
45CFM
Approvals
UL, CE, TUV
Bearing Type
Vapo-Bearing
Package/Case
Axial
Current Rating
195mA
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
2.34W
Noise
43dBA
RPM
3900RPM
Series
MagLev® PF
Termination
2 Wire Leads
Weight
0.188lb
Width
25mm
Compliance
RoHS
Compliant
Datasheet
Sunon PF80201V3-000U-A99 Datasheet
Download the complete datasheet for Sunon PF80201V3-000U-A99 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

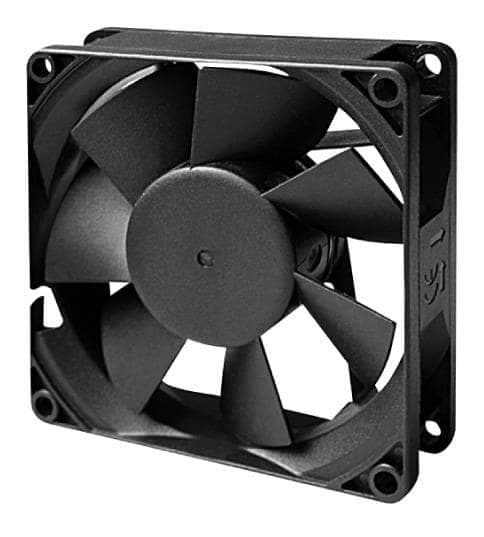

Product Images
