High-performance axial fan, 120mm width and height, 38mm depth, delivering 190 CFM airflow at 4200 RPM. Features a durable ball bearing system for reliable operation and a 24 VDC operating supply voltage with a 760mA current rating, consuming 18.2W. Constructed from UL94 V-0 rated plastic material, this fan operates within a temperature range of 14°C to 158°C and includes 2 wire leads for termination. Approvals include UL, CE, and TUV, with RoHS compliance and lead-free construction.
PackageAxial
Voltage Rating24V
Current Rating760mA
Power18.2W
Quick Jump:
Technical Specifications
Sunon PMD2412PMB1-A.(2).GN technical specifications.
General
Airflow
190CFM
Approvals
UL, CE, TUV
Bearing Type
Ball
Package/Case
Axial
Current Rating
760mA
Depth
38mm
Flammability Rating
UL94 V-0
Height
120mm
Lead Free
Lead Free
Material
Plastic
Max Operating Temperature
158°C
Min Operating Temperature
14°C
Max Power Dissipation
18.2W
Noise
54dBA
Noise Level
54
dBA
Operating Supply Voltage
24V
Package Quantity
30
Power Consumption
18.2W
RoHS Compliant
Yes
RPM
4200RPM
Series
MagLev®
Termination
2 Wire Leads
Voltage Rating
24V
Weight
0.728lb
Width
38mm
Compliance
RoHS
Compliant
Datasheet
Sunon PMD2412PMB1-A.(2).GN Datasheet
Download the complete datasheet for Sunon PMD2412PMB1-A.(2).GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

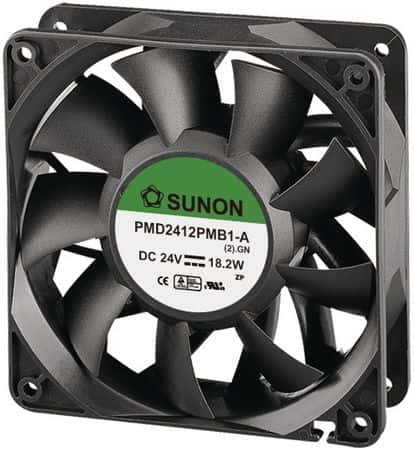

Product Images
