PackageAxial
Current Rating60mA
Quick Jump:
Technical Specifications
Sunon SF23092A-2092HSL.GN technical specifications.
General
Airflow
36CFM
Bearing Type
Sleeve
Package/Case
Axial
Current Rating
60mA
Height
91.5mm
Length
91.5mm
Material
Aluminium
Max Power Dissipation
14W
Noise
39dBA
Noise (dB)
39dB
Noise Level
36/39
dBA
Package Quantity
1
RoHS Compliant
Yes
RPM
2750RPM
Series
SF
Termination
2 Wire Leads
Weight
0.617lb
Width
25.5mm
Compliance
RoHS
Compliant
Datasheet
Sunon SF23092A-2092HSL.GN Datasheet
Download the complete datasheet for Sunon SF23092A-2092HSL.GN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

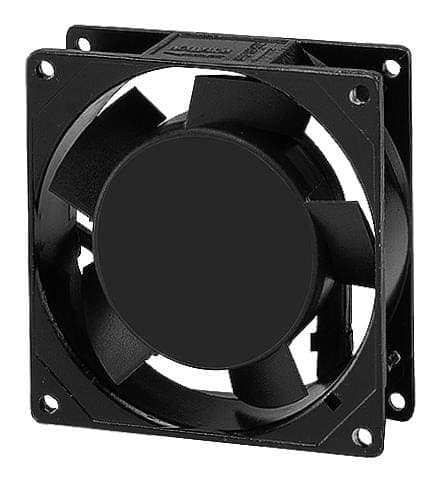

Product Images
