Automotive-grade 6mR, 1% tolerance chip resistor with 3W power dissipation. Features METAL FOIL technology in a 6432 (2512 imperial) SMD/SMT package, measuring 6.3mm x 3.1mm x 0.5mm. Operating temperature range from -55°C to 155°C, with AEC-Q200 qualification. Packaged in tape and reel for high-volume applications.
Package6432
Resistance6mR
Quick Jump:
Technical Specifications
Susumu KRL6432E-M-R006-F-T1 technical specifications.
General
Case Code (Imperial)
2512
Case Code (Metric)
6432
Package/Case
6432
Features
Automotive AEC-Q200
Height
0.5mm
Length
6.3mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
3W
Number of Terminations
2
Package Quantity
1000
Packaging
Tape and Reel
Ratings
AEC-Q200
Resistance
6mR
RoHS Compliant
Yes
Series
KRL
Technology
METAL FOIL
Termination
SMD/SMT
Tolerance
1%
Weight
0.001429oz
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Susumu KRL6432E-M-R006-F-T1 Datasheet
Download the complete datasheet for Susumu KRL6432E-M-R006-F-T1 to view detailed technical specifications.
No datasheet is available for this part.

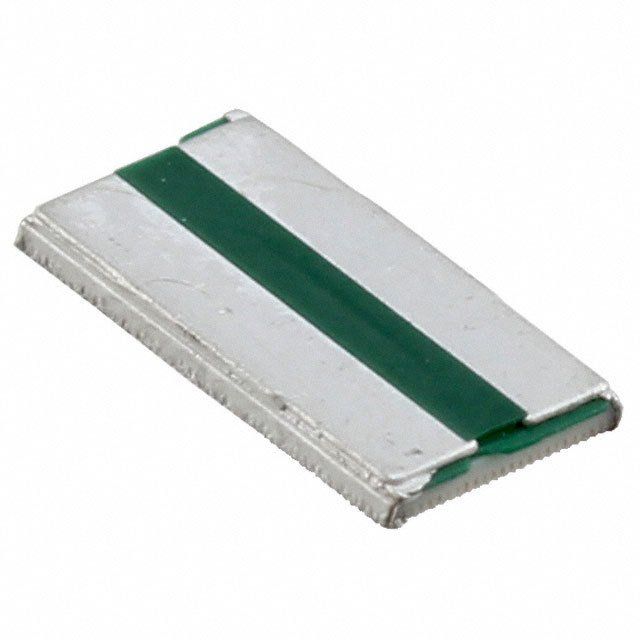

Product Images
