Cylindrical primary lithium battery, 3.6V output voltage, offering 2.1Ah capacity. Features a wide operating temperature range from -55°C to 85°C. With a diameter of 14.5mm and height of 50.5mm, this non-rechargeable battery is lead-free and weighs 17.6g.
Voltage3.6V
Storage2.1ah
Voltage Rating3.6V
MountingStandard
Quick Jump:
Technical Specifications
Tadiran Batteries TL-5104/S technical specifications.
General
Battery Chemistry
LITHIUM
Battery Type
PRIMARY
Capacity
2.1ah
Chemistry/Technology
Lithium
Diameter
14.5mm
Height
50.5mm
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Mount
Standard
Output Voltage
3.6V
Packaging
Tray
Rechargeability
Non-Rechargeable
Voltage
3.6V
Voltage Rating
3.6V
DC Rated Voltage
3.6V
Weight
17.6g
Compliance
RoHS
Compliant
Datasheet
Tadiran Batteries TL-5104/S Datasheet
Download the complete datasheet for Tadiran Batteries TL-5104/S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

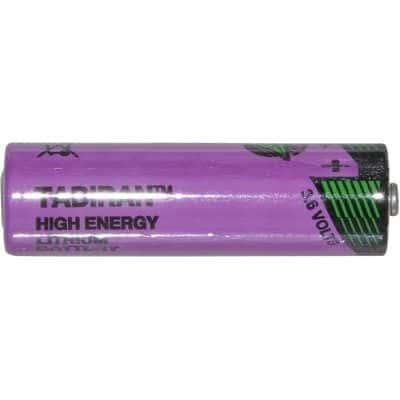

Product Images
