Taiwan Semiconductor
GBU405
Bridge Rectifier Diode, 1 Phase, 4A, 600V V(RRM), Silicon, GREEN, PLASTIC, GBU, 4 PIN
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Taiwan Semiconductor GBU405 technical specifications.
General
Package/Case
SIP
Flammability Rating
UL94 V-0
Forward Current
4A
Height
18.8mm
Length
22.3mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
150A
Mount
Through Hole
Output Current
4A
Package Quantity
1000
Packaging
Rail/Tube
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.56mm
Compliance
RoHS
Compliant
Datasheet
Taiwan Semiconductor GBU405 Datasheet
Download the complete datasheet for Taiwan Semiconductor GBU405 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

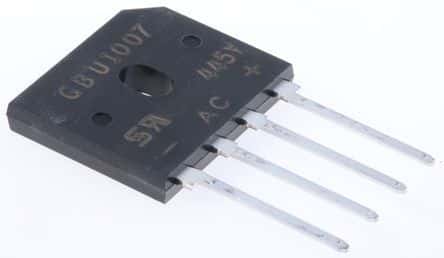

Product Images
