PackageDO-15
MountingThrough Hole
PolarityUnidirectional
Quick Jump:
Technical Specifications
Taiwan Semiconductor P6KE82A R0 technical specifications.
General
| Package/Case | DO-15 |
| Clamping Voltage | 113V |
| Leakage Current | 1uA |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 5.5A |
| Peak Pulse Power | 600W |
| Polarity | Unidirectional |
| Reverse Breakdown Voltage | 77.9V |
| Reverse Standoff Voltage | 70.1V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor P6KE82A R0 Datasheet
Download the complete datasheet for Taiwan Semiconductor P6KE82A R0 to view detailed technical specifications.
No datasheet is available for this part.

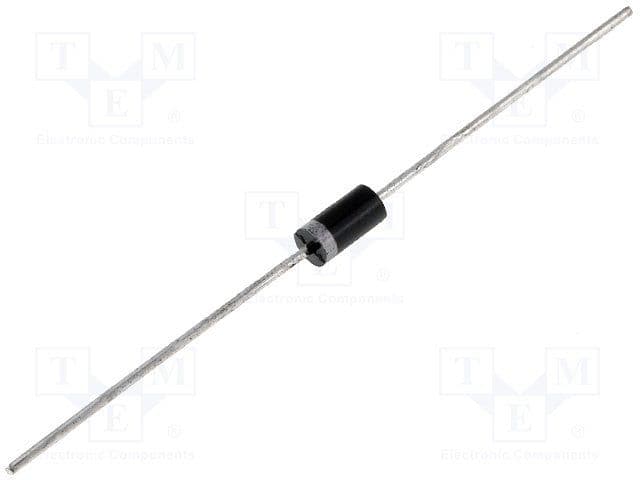

Product Images
