The S1ML diode is a general purpose rectifier with a maximum operating temperature of 150°C and a minimum operating temperature of -55°C. It has a maximum forward surge current of 30A and a maximum reverse current of 5uA. The diode is packaged in a surface mount SMD/SMT package and is available in quantities of 7500 per reel. The S1ML is RoHS compliant and suitable for use in high-temperature applications.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Taiwan Semiconductor S1ML technical specifications.
General
| Package/Case | SMD/SMT |
| Forward Current | 1.5A |
| Max Forward Surge Current (Ifsm) | 30A |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -55°C |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV |
| Max Reverse Current | 5uA |
| Max Surge Current | 30A |
| Mount | Surface Mount |
| Package Quantity | 7500 |
| Packaging | Tape and Reel |
| Peak Non-Repetitive Surge Current | 30A |
| Reach SVHC Compliant | No |
| Reverse Recovery Time | 1800ns |
| Reverse Voltage | 1kV |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
Compliance
| RoHS | Compliant |
Datasheet
Taiwan Semiconductor S1ML Datasheet
Download the complete datasheet for Taiwan Semiconductor S1ML to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

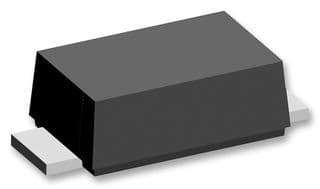

Product Images
